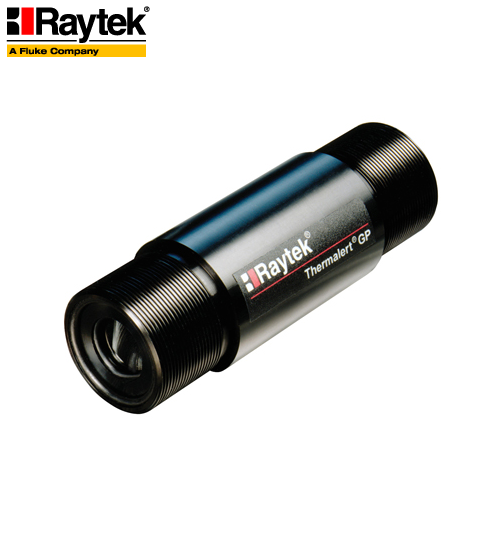

Cảm biến nhiệt hồng ngoại (Infrared Temperature Sensor) - Raytek

Model: RAYGPRCFW

Specifications:

Output

4-20 mA, Type J Thermocouple, Type K Thermocouple, Type E Thermocouple, Type N Thermocouple, Type R Thermocouple, Type S Thermocouple, Type T Thermocouple

Temperature Range

0 to 1000 F

Optics (D:S)

30:1

Accuracy

+/- 1% of reading or +/- 2 F (1 C), whichever is greater

Repeatability

+/- 0.5% of reading or +/- 2 F (1 C), whichever is greater

Response Time

300 ms

Emissivity

0.1 to 1.09 digitally adjustable increments of .01

Spectral Response

8-14 ?m

Power Requirement

110-220 VAC, +/- 20%, 50-60 Hz

Housing

Air/Water Coolable, NEMA 4 (IP65) rated stainless steel head

Operational Ambient Temperature

32 to 149 F (0 to 65 C)

Storage Temperature

-22 to 150 F (-30 to 65 C)

Relative Humidity

10 to 95%, non-condensing

Shock

IEC 68-2-27 (MIL-STD-8100), 50 g, 11 ms, any axis

Vibration

IEC 68-2-6 (MIL-STD-8100), 3 g, 11 to 200 Hz, any axis
