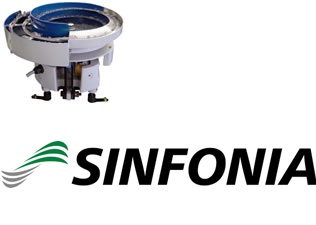

 DMS Series
Almost no damage to handling work pieces by smooth handling. A low height model is now on sale.
Compact size makes it possible to interchange them with EA/ER Series parts feeders or those of other manufacturers.
It's able to handle works smoothly and maintain its ability even sorting complex material.
Providing the most suitable vibrating degree and position gap depends on your works.
| Drive Unit Specifications |
|
Model
|
DMS
-15C |
DMS
-20C |
DMS
-25C |
DMS
-30C |
DMS
-38C |
DMS
-45C |
| Drive unit outer diameter(mm) |
φ160 |
φ210 |
φ260 |
φ310 |
φ390 |
φ460 |
| Drive unit height(mm) |
130 |
150 |
185 |
220 |
250 |
265 |
| Drive unit weight(kg) |
7 |
14 |
24 |
40 |
70 |
110 |
| Rated voltage(V) |
200 |
| Rated current(A) |
Horizontal |
0.18 |
0.3 |
0.6 |
2.0 |
2.0 |
2.0 |
| Vertical |
0.18 |
0.3 |
0.3 |
0.8 |
0.8 |
2.0 |
| Vibration frequency(HZ) |
100〜180 |
70〜110 |
Unprocessed bowl diameter (mm)
(cylindrical) |
φ150 |
φ200 |
φ250 |
φ300 |
φ375 |
φ450 |
Max. bowl diameter (mm)
(cylindrical) |
φ250 |
φ320 |
φ400 |
φ500 |
φ600 |
φ700 |
Max. amplitude (mm)
（Unprocessed cylindrical
bowl periphery） |
Horizontal |
0.6 |
1.0 |
| Vertical |
0.13 |
0.3 |
Max. loaded weight(kg)
(workpieces + bowl weight) |
2.3 |
4 |
8 |
12.5 |
17 |
26 |
| Cross section area of power cable(mm2) |
0.75×5cores |
| Applicable controller |
C10-4DM |
|
| Model |
H |
φA |
φB |
M |
φD |
φE |
φF |
φd |
φe |
| DMS-15C |
127～130～133 |
160 |
150 |
M8 |
72 |
94 |
130 |
50 |
120 |
| DMS-20C |
147～150～153 |
210 |
200 |
M10 |
100 |
130 |
170 |
70 |
160 |
| Dimensions |
| DMS-25C~45C |
|
|
| Model |
H |
φA |
φB |
M |
φF |
L |
N |
O |
Q |
φD |
φE |
φd |
φe |
| DMS-25C |
182～185～188 |
260 |
250 |
M12 |
216 |
58 |
50 |
16 |
10 |
140 |
160 |
100 |
200 |
| DMS-30C |
215～220～225 |
310 |
300 |
M12 |
252 |
85 |
75 |
20 |
20 |
172 |
192 |
140 |
240 |
| DMS-38C |
245～250～255 |
390 |
380 |
M16 |
324 |
85 |
75 |
20 |
20 |
215 |
240 |
170 |
300 |
| DMS-45C |
260～265～270 |
460 |
450 |
M16 |
390 |
85 |
75 |
20 |
20 |
270 |
300 |
210 |
350 |
