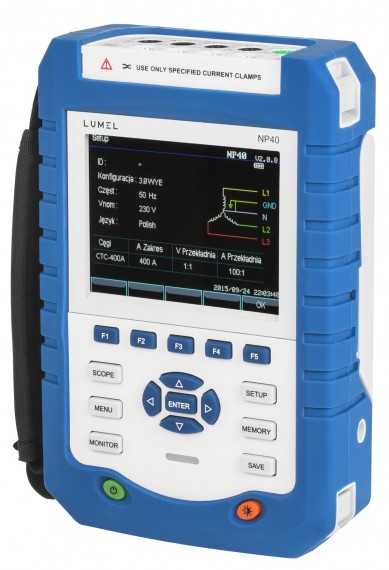

Mr. Huy- 5,6" TFT color screen, 320 x 240 pixel,
- waveform real-time display (4 voltages/4 currents),
- half cycle RMS measurement (voltage and current),
- measurement of TRMS currents up to 3000 A (with standard sensor),
- measurement in 1-phase and 3-phase systems (3 - and 4-wire),
- measurement of voltage, current, harmonics, power, energy, inrush current, flicker and other,
- graphical presentation of data in a waveform and vector diagram.
- record of events: dips, swells, overvoltages,
- power quality according to EN-50160 standard or user-defi ned limit,
- internal memory for data logging needs (continuous registration from 2 hours to 7 days),
- the registration frequency from 1 second up to 60 minutes,
- built-in 8G memory card,
- ethernet interface for remote operation of the analyzer,
- USB Host to move archive data and screenshots to an external USB memory,
- safety standards: EN 61010-1, CAT III 1000V / CAT IV 600V.
