Thông tin sản phẩm
Thông số kỹ thuật

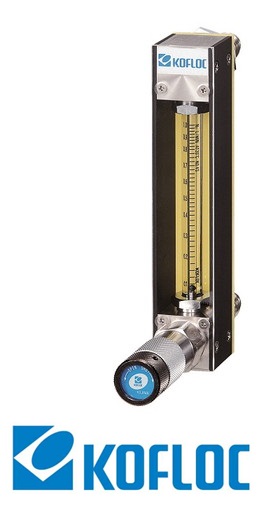

RK1500 Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang

GasesLiquidsFluidsAir, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas)
For other gases, consultation is necessary regarding whether
conversion conditions or calibration by actual gas is to be used.
* Optional: Scale

	Gases	Liquids
Fluids	Air, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas) For other gases, consultation is necessary regarding whether conversion conditions　or calibration by actual gas is to be used. * Optional: Scale indicating two types of fluids	Standard fluid: Water For other liquids, consultation is necessary regarding whether conversion conditions　or calibration by actual liquid is to be used.
Flow range	0.5-5 ML/MIN to 3-30 L/MIN (See the Capacity Table below.) * Optional: 0.5-3 ML/MIN	0.5-5 ML/MIN to 0.1-1 L/MIN (See the Capacity Table below.) * Optional: 0.5-3 ML/MIN
Accuracy	FS±2% (Measurement point) * Optional: FS±1% (Measurement point)	FS±2% (Measurement point)
Proof pressure	1.0 MPa for 100 ML/MIN or less 0.7 MPa for 5 L/MIN or less 0.5 MPa for 10 L/MIN or more	1.0 MPa for 5 ML/MIN or less 0.7 MPa for 150 ML/MIN or less 0.5 MPa for 200 ML/MIN or more
Available scale	10:1 * Optional: 20:1


Materials	SS
Body block	SUS316
Tapered tube	Pyrex®, glass
Packing	FKM, fluorocarbon resin
Float	Pyrex, SUS 316, glass
Protective cover	Acrylic resin
Temperature 　resistance	MAX60℃
