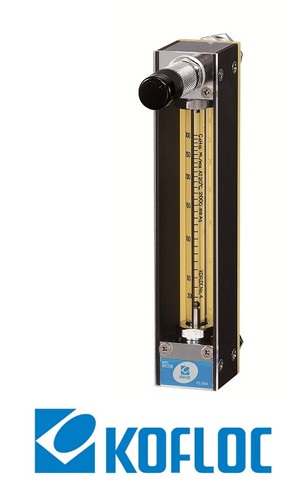

Mr. BảoRK1200 Thiết bị đo lưu lượng Kofloc Vietnam ANSdanang
GasesLiquidsFluidsAir, N2, O2, H2, He, Ar, and CO2 (Calibration by actual gas) For other gases, consultation is necessary regarding whether conversion conditions or calibration by actual gas is to be used. * Optional: Scale indicating two types of fluidsStandard fluid: Water For other liquids, consultation is necessary regarding whether conversion conditions or calibration by actual liquid is to be used.Flow range0.5-5 ML/MIN to 10-100 L/MIN (See the Capacity Table below.) * Optional: 0.5-3 ML/MIN0.5-5 ML/MIN to 0.2-2 L/MIN (See the Capacity Table below.) * Optional: 0.5-3 ML/MINAccuracyFS±2% (Measurement point) * Optional: FS±1% (Measurement point)FS±2% (Measurement point)Proof pressure1.0 MPa for 100 ML/MIN or less 0.7 MPa for 5 L/MIN or less 0.5 MPa for 10 L/MIN or more1.0 MPa for 5 ML/MIN or less 0.7 MPa for 150 ML/MIN or less 0.5 MPa for 200 ML/MIN or moreAvailable scale10:1 * Optional: 20:1MaterialsSSBSBody blockSUS316BrassTapered tubePyrex®, glassPackingFKMNBRFloatPyrex, SUS316, SUS304, glassProtective coverAcrylic resinTemperature resistanceMAX60℃Connection endRc1/4 (Standard); Rc1/8 (Optional) |
