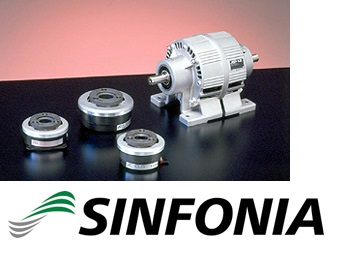

JEM-05 Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

JEM-05 Brake Sinfonia Vietnam ANSdanang

[Stand type]<JEM-05>
Type JEM-05
Clutch Brake
Clutch/Brake Built-in clutch/brake JCC-1.2F JB-1.2
Static friction torque Nm 12
Rated voltage DC-V 24
Power consumption W(at75℃) 11 11
Motor Capacity kW 0.4
Voltage, Frequency,
Number of poles		 AC200/200,220V,50Hz/60Hz,4P
Weight kg 16
(Note) The specification of built in clutch/brake is dedicated to JEM.
Unit:mm





Diameter direction
A 150
B 62.5
C 80
D1 132
D2 131
E 45
F 118
G 11
H 147.5
I 145.5
Shaft direction
L 364.5
M 150
N 62.5
O 47
P1 249.5
P2 115
R 83.5
Z 10
Shaft edge
Q 30
QK 25
d 15
b 5
h 5
t

3
Power box
DMP-20/24A
High frequency
controller
EMP-20DB
CSM-55DB
CMPH-100/4HA
