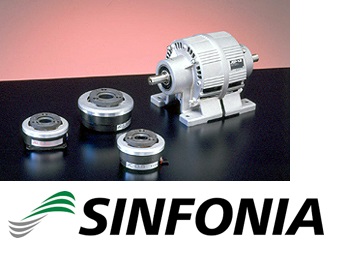

JEM-02 Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

JEM-02 Brake Sinfonia Vietnam ANSdanang

[Stand type]<JEM-02>
Type JEM-02
Clutch Brake
Clutch/Brake Built-in clutch/brake JCC-0.6F JB-0.6
Static friction torque Nm 6
Rated voltage DC-V 24
Power consumption W(at75℃) 8 8
Motor Capacity kW 0.2
Voltage, Frequency,
Number of poles		 AC200/200,220V,50Hz/60Hz,4P
Weight kg 11
(Note) The specification of built in clutch/brake is dedicated to JEM.
Unit:mm



Diameter direction
A 130
B 55
C 71
D1 116
D2 131
E 40
F 118
G 9
H 130.5
I 136
Shaft direction
L 327.5
M 130
N 55
O 38
P1 231.5
P2 96
R 69.5
Z 7
Shaft edge
Q 25
QK 21
d 12
b 4
h 4
t 2.5
Power box
DMP-20/24A
High frequency
controller
EMP-20DB
CSM-55DB
CMPH-100/4HA
