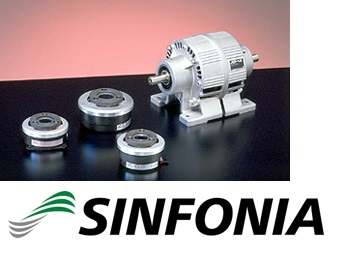

<JEP-5>
Type JEP-5
Clutch Brake
Built-In clutch/brake JCC-5F JB-5
Static friction torque Nm 50
Rated voltage DC-V 24
Power consumption W(at75℃) 23 20
Weight kg 14
(Note) The specification of built in clutch/brake is dedicated to JEP.
Unit:mm





Diameter direction
A 188
B 75
C 100
D 188
E 50
F 106
G 15
H 194
Shaft direction
L 360
M 220
N 90
O 60
P 180
R 128
Z 12
Shaft edge
Q 50
QK 38
d 25
b 8
h 7
t

4

Power box
DMP-63/24A
High frequency
controller
EMP-70DB
CSM-55DB
CMPH-250/4HB
