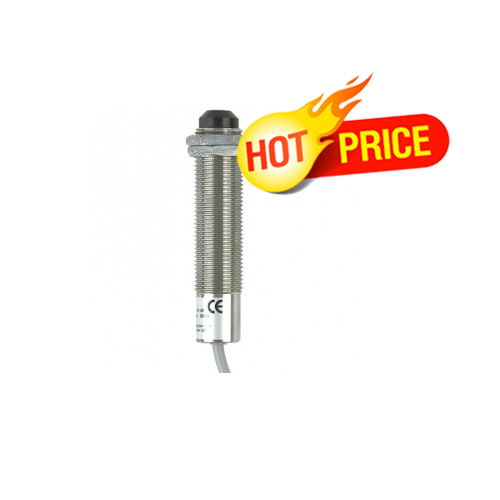

Cảm biến nhiệt độ hồng ngoại Raytek CI- Raytek RAYCI2A
Nhà cung cấp: ANS Vietnam
Hãng sản xuất: RAYTEK VIET NAM
Ứng dụng sản phẩm: Automotive, Chemical
Mr. BảoRaytek Vietnam,Cảm biến nhiệt độ hồng ngoại Raytek CI- Raytek RAYCI2A
Cảm biến nhiệt độ hồng ngoại Raytek CI- Raytek RAYCI2A Infrared Temperature Sensor
-
Tên thiết bị: Cảm biến nhiệt độ hồng ngoại Raytek
-
Mã đặt hàng: RAYCI2A, RAYCI2B; RAYCI1A; RAYCI1B; RAYCI3A; RAYCI3B; RAYCI1AW; RAYCI2BM; RAYCI2AM; RAYCI2AW; RAYCI3BM
-
Nhà sản xuất: (Raytek) Fluke – USA/ China origin
-
Nhà cung cấp: (Raytek) Fluke Việt Nam, (Raytek) Fluke Vietnam
-
Data sheet: https://www.raytek-direct.com/product/raytek-rayci2a-fixed-ir-sensor-type-k-output-0-to-115c
Cảm biến nhiệt độ hồng ngoại Raytek RAYCI2A, Type K Output, 0 to 115°C (32 to 240°F) - Raytek RAYCI2A Infrared Temperature Sensor
-
Cảm biến nhiệt độ hồng ngoại Raytek CI được thiếu kế để đo nhiệt độ hồng ngoại trong một cảm biến nhỏ gọn, chi phí thấp và dễ dàng thay thế các đầu dò tiếp xúc truyền thống bằng đầu ra cặp nhiệt J hoặc K, hoặc đầu ra 0-5V, khi được tích hợp vào hệ thống 4 dây tiêu chuẩn
-
Dải đo nhiệt độ mục tiêu trong khoảng từ 0 đến 115 ° C (32 đến 240 ° F), các thiết bị điện tử trên bo mạch của cảm biến Raytek CI được bảo vệ bằng vỏ thép không gỉ IP 65 (NEMA-4) chắc chắn, cho phép cảm biến hoạt động ở nhiệt độ môi trường xung quanh 70 ° C (160 ° F) mà không cần làm mát. Cảm biến CI có thể chịu được nhiệt độ môi trường xung quanh trong môi trường làm mát đến 260 ° C (500 ° F)
-
Có thể được sử dụng trong các ứng dụng: đúc thổi, sơn phủ, gia công nhiệt, làm khô, dập nổi, đùn, tạo hình, gia nhiệt, cán, đúc, tách lớp, lát đường, in và tạo hình bằng nhiệt.
Temperature Range |
0 to 115°C (32 to 240°F) |
Temperature Resolution |
<0.5°C or 1°F |
Accuracy |
±2% or ±3ºC (6°F), whichever is greater |
System Repeatability |
±1% of measured value or ±1°C (2°F), whichever is greater |
Response Time (95%) |
350 mSec |
Emissivity |
Fixed at 0.95 |
Spectral Response |
7 to 18 µm |
Optical Resolution |
4:1 (Distance : Spot Size) |
Datasheet: https://www.raytek-direct.com/pdfs/cache/www.raytek-direct.com/rayci2a/datasheet/rayci2a-datasheet.pdf
Manual: https://www.raytek-direct.com/pdfs/cache/www.raytek-direct.com/rayci2a/manual/rayci2a-manual.pdf
Cảm biến nhiệt độ hồng ngoại Raytek CM- Raytek RAYCMLTV3M Infrared Temperature Sensor
-
Tên thiết bị: Cảm biến nhiệt độ hồng ngoại Raytek
-
Mã đặt hàng: RAYCMLTV3M; RAYCMLTK; RAYCMLTJ3M; RAYCMLTVM; RAYCMLTK3M; RAYCMLTKM
-
Nhà sản xuất: (Raytek) Fluke – USA/ China origin
-
Nhà cung cấp: (Raytek) Fluke Việt Nam, (Raytek) Fluke Vietnam
-
Data sheet: https://www.raytek-direct.com/product/raytek-raycmltv3m-fixed-ir-sensor-vdc-output-with-3m-cable-18mx1-thread
Cảm biến nhiệt độ hồng ngoại Raytek CM là cảm biến hồng ngoại tích hợp, nhỏ gọn, mạnh mẽ được thiết kế để theo dõi nhiệt độ liên tục, dễ dàng thay thế các đầu dò tiếp xúc truyền thống bằng đầu ra cặp nhiệt điện J hoặc K hoặc đầu ra 0-5V có thể mở rộng, nếu ứng dụng của cần hoạt động trong môi trường yên tĩnh
Mặc dù có kích thước nhỏ nhưng cảm biến CM được trang bị các tính năng tiên tiến. Giao diện kỹ thuật số RS232 hai chiều cho phép người dùng xác định cấu hình các biến cảm biến với Phần mềm DataTemp Multidrop đi kèm với mỗi cảm biến. Chúng bao gồm đầu ra cảnh báo 24VDC được kích hoạt bởi nhiệt độ mục tiêu hoặc nhiệt độ môi trường xung quanh, đèn LED báo tình trạng cảm biến tích hợp cung cấp một chỉ báo trực tuyến về trạng thái hoạt động của cảm biến và hỗ trợ khắc phục sự cố khi thiết lập cảm biến ban đầu
Output |
Scaleable 0-5VDC |
Temperature Range |
-20 to 500ºC (-4 to 932ºF) |
Temperature Resolution |
0.1°C |
Accuracy |
±1.5% of reading ±2ºC or ±4ºC, whichever is greater |
Repeatability |
±0.5% of reading ±1ºC or ±2ºC, whichever is greater |
Response Time (95%) |
150 mSec |
Spectral Response |
8 to 14 µm |
Optical Resolution |
13: 1 @ 90% energy |
Emissivity |
0.10 to 1.10 (adjustable) |
Transmissivity |
0.10 to 1.00 (adjustable) |
Thread |
18M x 1 metric |
Power Supply |
24 VDC ±20% @ 20mA |
Datasheet: https://www.raytek-direct.com/pdfs/cache/www.raytek-direct.com/raycmltv3m/datasheet/raycmltv3m-datasheet.pdf
Manual: https://www.raytek-direct.com/pdfs/cache/www.raytek-direct.com/raycmltv3m/manual/raycmltv3m-manual.pdf
THERMOJACKET: EXTRA RUGGED CAST METAL HOUSING FOR THERMAL, MECHANICAL, & ENVIRONMENTAL PROTECTION FOR MARATHON SENSORS, AND TX SENSORS. |
|||
RAYTXXTJ3 |
|
ThermoJacket housing for TX sensors |
|
THERMOJACKET ACCESSORIES |
|||
XXXTXXMF |
|
Mounting Flange for ThermoJacket |
|
XXXTXXMB |
|
Adjustable mounting base for ThermoJacket |
|
XXXTXXGTQ |
|
Blast Gate Assembly with Quartz Window (HT model) |
|
XXXTXXGTA |
|
Blast Gate Assembly with Amtir Window (LT, MT, G5, P7 models) |
|
XXXTXXAPA |
|
Adjustable Pipe Adapter assembly |
|
XXXTXXMST |
|
Mounting flange for use with sighting tubes |
|
XXXTSTC12 |
|
30 cm (12") sighting tube, ceramic (up to 1500°C) |
|
XXXTST12 |
|
30 cm (12") sighting tube, stainless steel (up to 800°C) |
|
BEESIGHTT |
|
30 cm (12") sighting tube, carbon steel with 45 degree end cut and slotted weep hole at base |
|
FLOW REGULATORS: FOR USE WITH COOLING/PURGING OPTIONS AND ACCESSORIES |
|||
XXXTXXWR |
|
Water flow regulator (water cooling) |
|
XXXTXXAR |
|
Air purging flow regulator assembly with air filter |
|
XXXTXXCAFR |
|
Cooling air flow regulator (high capacity) |
|
THERMOJACKET & ACCESSORIES |
|||
THERMOJACKET: EXTRA RUGGED CAST METAL HOUSING FOR THERMAL, MECHANICAL, & ENVIRONMENTAL PROTECTION FOR MARATHON SENSORS, AND TX SENSORS. |
|||
RAYTXXTJ3 |
|
ThermoJacket housing for TX sensors |
|
RAYTXXTJ4 |
|
ThermoJacket housing for Marathon MM Sensors |
|
RAYTXXTJ5 |
|
ThermoJacket housing for XR sensors |
|
THERMOJACKET ACCESSORIES |
|||
XXXTXXMF |
|
Mounting Flange for ThermoJacket |
|
XXXTXXMB |
|
Adjustable mounting base for ThermoJacket |
|
XXXTXXGTQ |
|
Blast Gate Assembly with Quartz Window (HT model) |
|
XXXTXXGTA |
|
Blast Gate Assembly with Amtir Window (LT, MT, G5, P7 models) |
|
XXXTXXAPA |
|
Adjustable Pipe Adapter assembly |
|
XXXTXXMST |
|
Mounting flange for use with sighting tubes |
|
XXXTSTC12 |
|
30 cm (12") sighting tube, ceramic (up to 1500°C) |
|
XXXTST12 |
|
30 cm (12") sighting tube, stainless steel (up to 800°C) |
|
BEESIGHTT |
|
30 cm (12") sighting tube, carbon steel with 45 degree end cut and slotted weep hole at base |
|
XXX2CFT |
|
Focus Adjustment Tool, for use when MR1S sensors are installed in a Thermojacket. |
|
BF2TJEXTENDER |
|
ThermoJacket Extension flange for CCD camera accessories mounted on MR Sensor in ThermoJacket |
|
BD3TJBACK |
|
ThermoJacket Rear cover with Peep-sight used for sighting Marathon models without removal |
|
XXXGTQHTW |
|
Replacement Quartz Window for Blast Gate Assembly |
|
JNTHDKIT |
|
Conversion Kit to install TX into existing Thermo-Jacket |
|
JNTORINGKIT |
|
5 complete O-ring sets for service of ThermoJackets |
|
FLOW REGULATORS: FOR USE WITH COOLING/PURGING OPTIONS AND ACCESSORIES |
|||
XXXTXXWR |
|
Water flow regulator (water cooling) |
|
XXXTXXAR |
|
Air purging flow regulator assembly with air filter |
|
XXXTXXCAFR |
|
Cooling air flow regulator (high capacity) |
|
Raynger® 3i Plus |
|||
RAYR3IPLUS1ML |
|
1 micron w/ Dual laser (EN60825 Class 2, FDA Class II)
|
|
RAYR3IPLUS1MSCL |
|
1 micron w/ Dual laser (EN60825 Class 2, FDA Class II) + Scope
|
|
RAYR3IPLUS2ML |
|
1.6 micron w/ Dual Laser (EN60825 Class 2, FDA Class II)
|
|
RAYR3IPLUS2MSCL |
|
1.6 micron w/ Dual Laser (EN60825 Class 2, FDA Class II) + Scope,
|
|
RAYR3IPLUSNBT1ML |
|
1 micron w/ Dual laser (EN60825 Class 2, FDA Class II)
|
|
RAYR3IPLUSNBT1MSCL |
|
1 micron w/ Dual laser (EN60825 Class 2, FDA Class II) + Scope
|
|
RAYR3IPLUSNBT2ML |
|
1.6 micron w/ Dual Laser (EN60825 Class 2, FDA Class II)
|
|
RAYR3IPLUSNBT2MSCL |
|
1.6 micron w/ Dual Laser (EN60825 Class 2, FDA Class II) + Scope,
|
|
3IPLUS Accessories |
|||
XXXR3IPLUSCC |
|
Carrying case |
|
XXXR3IPLUSSTRAP |
|
Neck strap |
|
XXXR3IPLUSACCU |
|
|
|
Spare Lithium-ion rechargeable battery, 2.5 Ah |
XXXR3IPLUSPS
Mini USB port adaptor with multi-country power plug
(100 – 240 VAC, 50/60 Hz), including SAA, EU, UK, US and CCC
XXXR3IPLUSPSCON
Mini USB-to-DC jack converter for charging battery separately
XXXR3IPLUSUSBCB
Computer cable with USB-to-Mini USB, 1.5 m (4.9 ft)
Raytek® MP150 Linescanner
RAYTMP150-LT
20 to 350°C (68 to 662°F), 3 to 5 µm
RAYTMP150-MT
100 to 800°C (212 to 1472°F), 3.9 microns
RAYTMP150-G5
100 to 950°C (212 to 1742°F), 5 microns
RAYTMP150-P30
30 to 250°C (86 to 482°F), 3.43 microns
RAYTMP150-P31
100 to 350°C (212 to 662°F), 3.43 microns
RAYTMP150-1M
600 to 1200°C (1112 to 2192°F), 1 micron
RAYTMP150-2M
400 to 950°C (752 to 1742°F), 1.6 micron
RAYTMP150-HR
100 to 650°C (212 to 1202°F), 3.5 to 4 micron
HR scanners are purpose built for cement scanning applications and include an internal heater and special focus distance as standard equipment. They are not equipped with a High Pressure Air Purge (HPAP). As such the only available part number is RAYTMP150HRR1.
Comunication Option R
RJ-45: Scanner data link is configured to plug into any standard RJ45 Ethernet network socket
Data Point Option (0)
Standard configuration: 512 data points per scan line (up to 80Hz), 256 data points (80 to 150Hz)
Data Point Option (1)
Enhanced configuration: 1024 data points per scan line (up to 40Hz), 512 data points per scan line (40 to 80Hz), 256 data points (80 to 150Hz)
XXXTMP150CERT
Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)
MP150 INFRARED LINESCANNER ACCESSORIES
XXXHSFIC1
High Speed Fiber-Optic/RJ45 Converter (1 Channel)
XXXHSFIC4
High Speed Fiber-Optic/RJ45 Converter (4 Channel)
XXXHSFICBOX
BOX FOR FIBER OPTIC/RJ45 CONVERTER + PS
SVCOSSAPKG
On-site Start-up and Commissioning Service (North America Only)
XXXTMP50ACMP
Mounting Plate for setting on a Tripod
XXXTMP50ACRMB
Adjustable Rugged Mounting Base, includes scanner mounting plate
XXXTXXWR
Water Flow Regulator
XXXTMP50THERM
Thermostatic Control System
XXXTXXCAFR
Air Flow Regulator, high capacity, for purging window
XXXTMP50ACFG
Laser Enhancing Filter Eyeglasses for laser sighting
XXXTMP50SPSCB
Spare MP50 power cable, 180°C max. 7.5 meters (25 ft.) long
XXXTMP50SPSCB10
Spare MP50 power cable, 180°C max. 10 meters (33 ft.) long
XXXTMP150SPETHCB
Spare MP150 Ethernet cable, 180°C max. 7.5 meters (25 ft.) long
XXXTMP150SPETHCB10
Spare MP150 Ethernet cable, 180°C max. 10 meters (33 ft.) long
XXXTMP50S485CB
Spare MP50 RS485 Cable with RS232 converter,180°C max. 7.5 meters (25 ft.) long
XXXTMP50S485CB10
Spare MP50 RS485 Cable with RS232 converter,180°C max. 10 meters (33 ft.) long.
XXXTMP50S4PCN
Spare MP50 4-pin connector
XXXTMP50S6PCN
Spare MP50 6-pin connector
XXXTMP50AC485CV
Spare RS485 converter for MP50 (no cable)
XXXSYS485CV
RS232/RS485 Converter (required for Output Modules).
XXXSYSPS
24VDC power supply (100/240),1.3 amps
XXXUSB485
USB to RS232/422/485 converter
XXXTMP150ACSWK1M
SPARE WINDOW FOR MP1501M
XXXTMP150ACSWK2M
SPARE WINDOW FOR MP1502M
XXXTMP150ACSWKG5
SPARE WINDOW FOR MP150G5
XXXTMP150ACSWKHR
SPARE WINDOW FOR MP150HR
XXXTMP150ACSWKLT
SPARE WINDOW FOR MP150LT
XXXTMP150ACSWKMT
SPARE WINDOW FOR MP150MT
XXXTMP150ACSWKP3
SPARE WINDOW FOR MP150P3
XXXTMP150FSNPT
NPT Fitting Set
XXXTMP150FSISO
ISO Fitting Set
XXXTMP150ACCC
Carrying case
High Temp Enclosure
XXXSYSENC
Enclosure & Base
Stainless steel enclosure with mounting base and integrated fail-safe shutter, includes grommet plates for wiring and cooling water (if req'd) and mounting aperture for high performance vortex cooler
XXXSYSENCICP
Internal Cold-Plates
Internal cold plates designed to cool scanner directly, Eliminates the need to disconnect plumbing fittings to remove scanner, supplied pre-connected with high temperature hoses - supplied as set of two.
SYSENCVT
High Performance Vortex Cooler
Separates compressed air (or nitrogen) into hot and cold streams to actively cool enclosure interior
XXXSYSENCWCS
Water Cooled Shield
Stainless steel high performance water shield. One inch water inlet and outlet permit high flow rates and extremely high heat removal capability.
XXXSYSENCIS
Insulating Shield
A custom stainless steel envelope filled with high performacne refractory material. Placed closest to the process, it prevents heat form entering the enclosure and lessens the heat removal requirements of other elements.
TF150 Process Imaging System for Thermoforming
RAYTTF150-LT
TF150 System with MP150LT 20 to 350°C (68 to 572°F), 3 to 5 microns
RAYTTF150-MT
TF150 System with MP150MT, 100 to 800°C (212 to 1472°F), 3.9 microns
RAYTTF150-P30
TF150 System with MP150P30, 30 to 250°C (86 to 482°F), 3.43 microns
RAYTTF150-31
TF150 System with MP150P31, 100 to 350°C (212 to 662°F), 3.43 microns
OPTION FOR TF150
XXXTMP150CERT
Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)
XXXTMP50ACRMB
Adjustable Rugged Mounting Base (includes scanner mounting plate)
XXXHSFIC1
High Speed Fiber-Optic/RJ45 Converter (1 Channel)
XXXHSFIC2
High Speed Fiber-Optic/RJ45 Converter (4 Channel)
XXXHSFICBOX
Housing, Fiber optic/RJ-45 converter and power supply
SVCOSSAPKG
On-site Start-up and Commissioning Service (North America Only)
GS150/GS150LE Process Imaging System for Glass Processing
RAYTGS150G5R1
specifies a Glass System with a low temperature 5µm linesscanner with RJ-45 type cable and 1024 maxmum data points per scan line.
RAYTGS150G5R0
specifies a Glass System with a low temperature 5µm linesscanner with RJ-45 type cable and 1024 maxmum data points per scan line.
UPGRADES
RAYTGS150LEUPGRADE
The GS150LE system was developed specifically to monitor glass which has been coated on one side with a low-emissivity coating. Includes specialized MI3 sensor and GS150LE software, air-purge jacket, PC connection Kit
OPTIONS
XXXTMP150CERT
Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)
XXXTMP50ACRMB
Adjustable Rugged Mounting Base (includes scanner mounting plate)
XXXHSFIC1
High Speed Fiber-Optic/RJ45 Converter (1 Channel)
XXXHSFIC2
High Speed Fiber-Optic/RJ45 Converter (4 Channel)
XXXHSFICBOX
Housing, Fiber optic/RJ-45 converter and power supply
SVCOSSAPKG
On-site Start-up and Commissioning Service (North America Only)
ES150 Process Imaging System for Film and Flat Sheet Extrusion or Continuous Web Processes
RAYTES150-LT
ES150 System with MP150LT 20 to 350°C (68 to 572°F), 3 to 5 microns
RAYTES150-MT
ES150 System with MP150MT, 100 to 800°C (212 to 1472°F), 3.9 microns
RAYTES150-G5
ES150 System with MP150G5, 100 to 950°C (212 to 1742°F), 5 microns
RAYTES150-P30
ES150 System with MP150P30, 30 to 250°C (86 to 482°F), 3.43 microns
RAYTES150-P31
ES150 System with MP150P31, 100 to 350°C (212 to 662°F), 3.43 microns
RAYTES150-1M
ES150 System with MP1501M, 600 to 1200°C (1112 to 2192°F), 1 micron
RAYTES150-2M
ES150 System with MP1502M, 400 to 950°C (752 to 1742°F), 1.6 micron
OPTIONS
XXXTMP150CERT
Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)
XXXTMP50ACRMB
Adjustable Rugged Mounting Base (includes scanner mounting plate)
XXXHSFIC1
High Speed Fiber-Optic/RJ45 Converter (1 Channel)
XXXHSFIC2
High Speed Fiber-Optic/RJ45 Converter (4 Channel)
XXXHSFICBOX
Housing, Fiber optic/RJ-45 converter and power supply
SVCOSSAPKG
On-site Start-up and Commissioning Service (North America Only)
EC150 Process Imaging System for Film and Flat Sheet Extrusion or Continuous Web Processes
RAYTEC150-P30-R
EC150 System with MP150P30, 30 to 250°C (86 to 482°F), 3.43 microns
RAYTEC150-P31-R
EC150 System with MP150P31, 100 to 350°C (212 to 662°F), 3.43 microns
OPTIONS
XXXTMP150CERT
Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item)
XXXTMP50ACRMB
Adjustable Rugged Mounting Base (includes scanner mounting plate)
XXXHSFIC1
High Speed Fiber-Optic/RJ45 Converter (1 Channel)
XXXHSFIC2
High Speed Fiber-Optic/RJ45 Converter (4 Channel)
XXXHSFICBOX
Housing, Fiber optic/RJ-45 converter and power supply
SVCOSSAPKG
On-site Start-up and Commissioning Service (North America Only)
CS210 Infrared Linescanning System for Rotary Kilns
RAYTCS211R1
CS211 Rotating Kiln System (Single Scanner)
Linescanner MP150HR
Protective Housing XXXSYSPHSS, stainless steel
Position Indicator with junction box (XXXSYSSECPI)
System Connection Box (field) CS210CONBOX
Fibre Optic Converter Housing XXXHSFICBOX (control room
DataTemp CS Software
Documentation
RAYTCS212R1
CS212 Rotating Kiln System (Dual Scanner)
2 Protective Housings XXXSYSPHSS, stainless steel
Position indicator with junction box (XXXSYSSECPI)
2 System Connection Boxes (field) CS210CONBOX
Fibre Optic Converter Housing XXXHSFICBOX (control room)
DataTemp CS Software
Documentation
RAYTCS213R1
CS213 Rotating Kiln System (Triple Scanner)
3 Linescanners MP150HR
3 Protective Housings XXXSYSPHSS, stainless steel
Position indicator with junction box (XXXSYSSECPI)
3 System Connection Boxes (field) CS210CONBOX
Fibre Optic Converter Housing XXXHSFICBOX (control room)
DataTemp CS Software
Documentation
RAYTCS214R1
CS214 Rotating Kiln System (Quad Scanner)
4 Linescanners MP150HR
4 Protective Housings XXXSYSPHSS, stainless steel
Position indicator with junction box (XXXSYSSECPI)
4 System Connection Boxes (field) CS210CONBOX
Fibre Optic Converter Housing XXXHSFICBOX (control room)
DataTemp CS Software
Documentation
RAYCS210EXT
CS21x Extension KIT
Maximum Extension up to a four Scanner System
1 Scanner RAYTMP150HRR1
1 Stainless Steel protective housing incl. Mounting Base XXXSYSPHSS
1 System Connection Box XXXCS210CONBOX
Scanner Cable Set LT
New License file (Serial number from all existing scanners needed with P.O.)
ACCESSORIES
XXXSYSCS210CON
Serial Ethernet Converter
Please note: Always necessary to connect with following components:XXXTCSLRM210, FAN Control Hardware, XXXTCS200BZ and XXXTCS200SM
XXXCS210CONBOX
CS210CONBOX,CS210 SYSTEM CONNECTION BOX
XXXCS210ENCON
Endurance Connection Box
XXXSYS16DA*
RS485 Remote Controller with 16 Digital-Outputs
XXXSYS7RA
7-Channel Relays Output Modul
XXXTCS210BZ
Burning Zone Monitoring: Endurance Connection Box
Endurance Ratio Pyrometer, 600 to 1800°C
15 m High Temperature Cable
ThermoJacket Housing for E-TJ1
Blast Gate Assembly with Quartz Window
30 cm sighting tube, stainless steel
Adjustable Pipe Adapter assembly
Adjustable Mounting Base for Thermojacket
Air Flow/Pressure Regulator Assembly
XXXTCS200SM
Shadow Monitoring: consists of MI Connection Box, MIH Sensor -40 to 600°C, 8 m high temperature cable, Air Purge Jacket, stainless steel, Adjustable Mounting Bracket.
XXXTCSLRM210
Live Ring Migration for CS210 System, complete with LRM Remote Controller & 3 position indicators
XXXSYSLDM
Laser distance meter
XXXPi20FO1
Fiber Optic Cable 150 m
XXXPi20FO2
Fiber Optic Cable 300 m
SVCOSSAPKG
On-site Start-up and Commissioning Service (Item # 2509605/North America only)
XXXSYS4AA
Analog Output Module (4 channels, mA or V)
XXXSYS485CV
RS232/RS485 Converter (required for Output Modules)
CS100/200 UPGRADES to CS210
XXXCS210BUPGRADE
Basic Upgrade to CS Software. This is not a full upgrade to the level of CS210
Not all functions of CS210 Upgrade are supported.
No new wiring of system needed.
XXXCS211BUPGRADE
CS101 to CS211 (1 scanner system)
Basic System Upgrade without new Scanner.
This upgrades requires the use of the MP150 line scanner to utilize all funcitonality.
Will work with MP50 (older generation) but not all features will be available
New wiring of system needed.
XXXCS212BUPGRADE
CS102 to CS212 (2 scanner system)
Basic System Upgrade without new Scanner.
This upgrades requires the use of the MP150 line scanner to utilize all funcitonality.
Will work with MP50 (older generation) but not all features will be available
New wiring of system needed.
RAYCS211FUPGRADE
Full System Upgrade (1 scanner system) with new Scanner MP150.
New wiring of system needed.
Accessories analogous to a new CS211 system.
RAYCS212FUPGRADE
Full System Upgrade (2 scanner system) with new Scanner MP150.
New wiring of system needed.
Accessories analogous to a new CS212 system.
CS210 Infrared Linescanning System for Rotary Kilns Upgrades & Accessories
XXXTCS3D210
3D View Software Upgrade for existing CS210 systems
XXXTCSRFM210
Refractory Management Software (incl. 3D Software) Upgrade for existing CS210 Systems
XXXCS210CONBOX
CS210 System Connection Box
XXXCS210ENCON
Endurance Connection Box
E1RL-F2-L-0-0
Endurance Ratio Pyrometer, 600 to 1800°C
A-CB-HT-M16-W12-15
15 m High Temperature Cable, 200°C
A-TJ-EN
ThermoJacket Housing for Endurance
XXXTXXGTQ
Blast Gate Assembly with Quartz Window (HT models)
XXXTST12
30 cm sighting tube, stainless steel
XXXTXXAPA
Adjustable Pipe Adapter assembly
XXXTXXMB
Adjustable Mounting Base for Thermojacket
XXXTXXAR
Air Flow/Pressure Regulator Assembly
XXXSYSCS200MICON
MI Connection Box (necessary for MIH Sensor)
RAYMI310LTHCB8
MI3 Sensor, -40 to 600°C, 8 to 14 µm, D:S 10:1, 130 ms, 8 m cable
D82MIACAJ
Air Purge Jacket, stainless steel
XXXMIACAB
Adjustable Mounting Bracket
RAYTMP150HRR1
Kiln Scanner RAYTMP150HRR1
XXXSYSPS1
Industrial Power Supply Extra 240VAC/24VDC/2,5A
XXXSYSPHSS
Stainless Steel Protective Housing
XXXSYSECPI
Position Indicator
XXXSYSPHSW
Protective Window For SYSPHSS
XXXHSFIC4
High Speed Fiber-Optic/RJ45 Converter (4 canals)
XXXSYSCONNBOXHEAT
Heater System
XXXTMP150FSNPT
NPT Fitting Set
XXXTMP150FSISO
ISO Fitting Set
XXXTCSLRMMCONNBOX
LRM Remote Control box
MP150 SYSTEM ACCESSORIES - ES150, EC150, TF150 and GS150
RAYSYSSOFTWARE
MP150 systemsoftware DTDP
XXXSYSPS
Ind. Power Supply Standard 100VAC to 240VAC/24VDC/1.3A for DIN rail mounting
XXXSYSPS1
Industrial Power Supply 100VAC to 240VAC/24VDC/2.5A for DIN rail mounting
XXXETHBASICKIT
Basic Kit for Output Adding
XXXETH16DI
16-Channel Digital Input
XXXETH16DO
16-Channel Digital Output
XXXETH2AISO
Passive Current Isolator
XXXETH2AOC0
Analog Output Module 0-20 mA (2 each)
XXXETH2AOC4
Analog Output Module 4-20 mA (2 each)
XXETH2AOV
Analog Voltage Output Module
XXXETH2R
Output Relay (2 each)
CARBON ANODE BAKE FURNACE SOLUTION |
||
CABFR1ACF1 |
|
4 Type of Cable (3, 4, 6, 10 meter) |
CABFR1BCF1 |
|
4 Type of Cable (3, 4, 6, 10 meter) |
INSTALLATION ACCESSORIES FOR CARBON ANODE BAKE FURNACE |
|
|
CABINSTALL1 |
|
Carbon Anode Bake Furnace Installation Kit. Stainless Steel hardware with quick disconnect, air purge, sight tube and 3m (10ft.) protection tube. For use with 3m fiber-optic cable. |
CABINSTALL2 |
|
Carbon Anode Bake Furnace Installation Kit. Stainless Steel hardware with quick disconnect, air purge, sight tube and 4m (13ft.) protection tube. For use with 4m fiber-optic cable. |
CABINSTALL4 |
|
Carbon Anode Bake Furnace Installation Kit. Stainless Steel hardware with quick disconnect, air purge, sight tube and 10m (30ft.) protection tube. For use with 3m fiber-optic cable. |
XXXFRFAWCKIT |
|
Field installable, Electronics cooling platform |
SMART RS485 CONVERTERS: These RS-485 to RS-232 interface converters are recommended for use with all Raytek Software Packages |
||
XXXUSB485 |
|
USB to RS232/422/485 converter |
SPARE PARTS |
|
|
XXXFR1HCF1B |
|
Replacement/Spare fiber-optic head |
XXXFR1CB3 |
|
3m (10ft.) FR1 fiber-optic cable |
XXXFR1CB4 |
|
Replacement/Spare 4m (13ft.) fiber-optic cable |
XXXFR1CB6 |
|
6m (20ft.) FR1 fiber-optic cable |
XXXFR1CB10 |
|
10m (33ft.) FR1 fiber-optic cable |
BF1FRWINDOW |
|
Sapphire protective Window mounted in Stainless Steel bezel |
RAYTX-S (Smart Series) |
||
RAYTX-S-LT |
|
Low Temp: -18 to 500°C (0 to 932°F) / 8 to 14 microns, TXSLT default scaling is -18 to 500°C (0 to 932°F) and can be field set up to 0 to 1000°F), TXFLT output fixed and scaled to 0 to 1000°F, TXCLT output is fixed and scaled to -18 to 500°C |
RAYTX-S-LT0 |
|
Low Temp: 0 to 500°C / 8 to 14 microns, TXCLT output is fixed and scaled 0 to 500°C (For use with TXC units only) |
RAYTX-S-MT |
|
Medium Temp: 200 to 1000°C (392 to 1832°F) / 3.9 microns, TXSMT default scaling is 200 to 1000°C (392 to 1832°F), TXFMT output fixed and scaled to 400 to 1800°F, TXCMT output is fixed and scaled to 200 to 1000°C |
RAYTX-S-HT |
|
High Temp: 500 to 2000°C (932 to 3632°F) / 2.2 microns, TXSHT default scaling is 500 to 2000°C (932 to 3632°F), TXFHT output fixed and scaled to 950 to 3600°F, TXCHT output is fixed and scaled to 500 to 2000°C |
RAYTX-S-G5 |
|
Glass Surface: 250 to 1650°C (482 to 3002°F) / 5.0 microns, TXSG5 default scaling is 250 to 1650°C (482 to 3002°F), TXFG5 output fixed and scaled to 500 to 3000°F, TXCG5 output is fixed and scaled to 250 to 1650°C |
RAYTX-S-P7 |
|
Thin Film Plastics (Polyester & Teflon): 10 to 360°C (50 to 680°F) / 7.9 microns, TXSP7 default scaling is 10 to 360°C (50 to 680°F), TXFP7 output fixed and scaled to 50 to 650°F, TXCP7 output is fixed and scaled to 10 to 360°C |
FOCUS OPTION FOR RAYTX-S |
||
SF |
|
Standard Focus, (33:1 D:S for all models except HT which has 60:1) |
CF1 |
|
Close Focus 1, (Not available for P7, consult factory for special G5 close focus) |
CF2 |
|
Close Focus 2, (Not available for P7, consult factory for special G5 close focus) |
PSF |
|
Plastic Fresnel Lens, Standard Focus, 15:1 D:S for LT models only |
|
|
|
OPTION FOR RAYTX-S |
IS4 |
|
Intrinsically-Safe Rating, for TXS models only
|
IS4W |
|
Intrinsically-Safe Rating for TXS including Water/Air Cooled Housing/Air Purge Collar
|
IS5 |
|
Intrinsically-Safe Rating, for TXS models only, PTB-approval
|
IS5W |
|
Intrinsically-Safe Rating for TXS including Water/Air Cooled housing/Air Purge Collar, Stainless Steel
|
XXXTXCERT |
|
Calibration is traceable to the International System of Units (SI), through National Metrological Institutes such as NIST (order as a separate line item) |
XXXTXACTWL |
|
Amtir Protective Window for LT model |
XXXTXACTWM |
|
Sapphire Protective Window for MT model |
XXXTXACTWH |
|
Glass Protective Window for HT model |
XXXTXACTWGP |
|
Calcium Fluoride Protective Window for G5 and P7 models |
XXXTXACTWLF1 |
|
Plastic Foil Protective Window in stainless Steel frame - for use with Laser-sighted models (includes 10 spare foils) |
XXXTWLF |
|
10 spare plastic foils for XXXTXACTWLF1 |
XXXTXACTWLS |
|
Stainless Steel Amtir Protective Window for LT model |
NOTE: Protective windows are shipped uninstalled from the factory. To signify "factory installed" window please add "I" to the end of the part number (e.g. XXXTXACTWL becomes XXXTXACTWLI) |
||
XXXTXACRCK |
|
Remote Communications Kit for Smart Model TXS, includes HART/RS232 adapter, cables & DataTemp Multidrop software. |
XXXSYSPS |
|
24VDC power supply (100/240),1.3 amps |
RAYGPC |
|
Remote Panel Mount Display and Power Supply for XR Sensors |
RAYGPCM |
|
GPC panel-mount meter with 3 A mechanical alarm relay outputs, fully isolated electrical inputs and outputs, 110/220 VAC power |
BFATXISSET |
|
Required Complete ABB power supply, IS barrier and isolater set for Intrinsically safe TX sensors |
XXXTXXACAP |
|
Air purge collar |
XXXTXXACCA |
|
Conduit adapter |
XXXTXXACPA |
|
Pipe adapter (Sighting Tubes listed below can be attached to this) |
XXXTXXACMN |
|
Mounting nut (spare) |
XXXTXXACFB |
|
Fixed bracket (spare) |
XXXTXXACAB |
|
Adjustable bracket (spare) |
XXXTXXACSB |
|
Swivel bracket |
XXXTXXACSV |
|
Sighting viewer setup tool |
XXXTXXACRA |
|
Right angle mirror (for targets at right angles to sensor axis) |
XXXTXXACAFA |
|
Adjustable Furnace Wall Mounting Assembly |
XXXTXXACFA |
|
Wall Mount Flange Assembly |
XXXTXXACAPS |
|
Stainless Steel Air Purge Collar |
|
|
|
|
Liên hệ & Báo giá chi tiết:
Sale ANS Vietnam:
thuyho@ansgroup.asia
Trực tiếp FaceBook
Trực tiếp Zalo: 0783698645
=====================================================
Click xem thêm ứng dụng sản phẩm khác
Đại lý phân phối chính hãng tại Vietnam
Báo giá ngay – Hàng chính hãng – Bảo hành 12 tháng – Tư vấn hỗ trợ kỹ thuật 24/7
Xem thêm sản phẩm hãng RAYTEK tại đây
