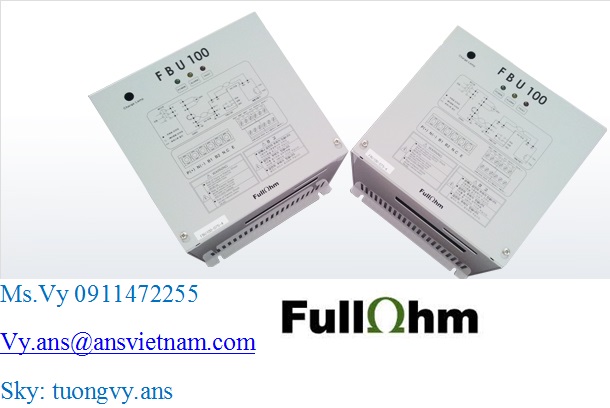

   BRAKING UNIT - FBU100(37kW ~ 220kW)

   DIMENSIONS

   SPECIFICATIONS
Frame Voltage(V) Capacity(KW) Enableduty(%ED) Dimension Install hole Cooling type
W H H2 D W1 H1
A 220 37 50 200 219 190 165.2 160 208.5 Natural
440 37 50 200 219 190 165.2 160 208.5 Natural
75 50 200 219 190 165.2 160 208.5 Natural
B 220 75 50 215 340 311 165.2 175 329.5 Natural
90 50 215 340 311 165.2 175 329.5 Natural
440 90 50 215 340 311 165.2 175 329.5 Natural
132 50 215 340 311 165.2 175 329.5 Natural
C 440 160 50 240 380 351 165.2 200 369.5 Natural
220 50 240 380 351 165.2 200 369.5 Natural

Frame Voltage(V) Capacity(KW) Enableduty(%ED) Dimension Install hole Cooling type
W H H2 D W1 H1
A 220 37 100 200 219 190 165.2 160 208.5 Natural
440 37 100 200 219 190 165.2 160 208.5 Natural
B 440 75 100 215 340 311 165.2 175 329.5 Natural
90 100 215 371 342 165.2 175 360.5 FAN
C 220 75 100 240 380 351 165.2 200 369.5 Natural
90 100 240 411 382 165.2 200 371.5 FAN
440 132 100 240 380 351 165.2 200 369.5 Natural
160 100 240 411 382 165.2 200 371.5 FAN
220 100 240 411 382 165.2 200 371.5 FAN

220V
TYPE (FBU100-□□□-2) 037 075 090
Max. current power 220V / MAX. DC 400V
Inverter Capacity [kW] 37 75 90
BRAKING UNIT Motor Capacity [kW] 37 75 90
- Resistance capacity perED(%)
- Operating voltage (DC380V)		 ED(%) Resistor Resistor Resistor
5% ED 5[kW] 10[kW] 13[kW]
10% ED 10[kW] 20[kW] 26[kW]
25% ED 25[kW] 50[kW] 65[kW]
50% ED 50[kW] 100[kW] 130[kW]
continuous1) Over 100[KW] Over 200[KW] Over 260[KW]
Min. resistance value 3[Ω] 1.5[Ω] 1.2[Ω]
Operating Voltage DC 300V ~ DC 400V (Before delivery DC 380V set)
Torque 150% Torque
※ 1) If you want ED100%, the type is FBU100 -□□□-2H.

440V
TYPE (FBU100-□□□-4) 037 075 090 132 160 220
Max. current power 440V / MAX. DC 800V
Inverter Capacity [kW] 37 75 90 132 160 220
BRAKING UNIT Motor Capacity [kW] 37 75 90 132 160 220
- Resistance capacity perED(%)
- Operating voltage (DC760V)		 ED(%) Resistor Resistor Resistor Resistor Resistor Resistor
5% ED 5[kW] 10[kW] 13[kW] 20[kW] 24[kW] 30[kW]
10% ED 10[kW] 20[kW] 26[kW] 40[kW] 48[kW] 60[kW]
25% ED 25[kW] 50[kW] 65[kW] 100[kW] 120[kW] 150[kW]
50% ED 50[kW] 100[kW] 130[kW] 200[kW] 240[kW] 300[kW]
continuous1) Over 100[KW] Over 200[KW] Over 260[KW] Over 400[KW] Over 480[KW] Over 600[KW]
Min. resistance value 12[Ω] 6[Ω] 5[Ω] 3.4[Ω] 2.8[Ω] 2[Ω]
Operating Voltage DC 600V ~ DC 800V (Before delivery DC 760V set)
Torque 150% Torque
※ 1) If you want ED100%, the type is FBU100 -□□□-4H.

600V 75℃ KIV CABLE (50%ED)
TYPE Frame Screw Torque Wire thickness Compression Terminal
FBU100-037-2 A M5 2.4 [N · M] 6 ㎟ (8AWG) 6 ㎟, 5Φ Hole
FBU100-037-4 M4 1.4 [N · M]
FBU100-075-4
FBU100-090-4 B M6 3.0 [N · M] 10 ㎟ (6AWG) 10 ㎟, 6Φ Hole
FBU100-132-4
FBU100-075-2 20 ㎟ (4AWG) 20 ㎟, 8Φ Hole
FBU100-090-2
FBU100-160-4 C M8 6.6 [N · M]
FBU100-220-4 25 ㎟ (3AWG) 25 ㎟, 8Φ Hole

600V 75℃ KIV CABLE (100%ED)
TYPE Frame Screw Torque Wire thickness Compression Terminal
FBU100-037-2H A M5 2.4 [N · M] 10 ㎟ (6AWG) 10 ㎟, 5Φ Hole
FBU100-037-4H M4 1.4 [N · M] 4 ㎟ (10AWG) 4 ㎟, 4Φ Hole
FBU100-075-4H B M6 3.0 [N · M] 10 ㎟ (6AWG) 10 ㎟, 6Φ Hole
FBU100-090-4H M8 6.6 [N · M] 20 ㎟ (4AWG) 20 ㎟, 8Φ Hole
FBU100-132-4H C 25 ㎟ (3AWG) 25 ㎟, 8Φ Hole
FBU100-075-2H 35 ㎟ (3AWG) 35 ㎟, 8Φ Hole
FBU100-160-4H
FBU100-090-2H 50 ㎟ (1/0AWG) 50 ㎟, 8Φ Hole
FBU100-220-4H 70 ㎟ (3/0AWG) 70 ㎟, 8Φ Hole

TYPE Screw Torque Wire thickness Crimp terminal
FBU100-037-4(H)
~
FBU100-220-4(H)		 M2.5 0.5 [N · M] AWG 20 ~ 18 BLADE / BAR / PIN Type
FBU100-037-2(H)
~
FBU100-090-2(H)


   HOW TO ORDER
FBU100 075 4
Model Inverter Capacity
Voltage
2 220V
4 440V
