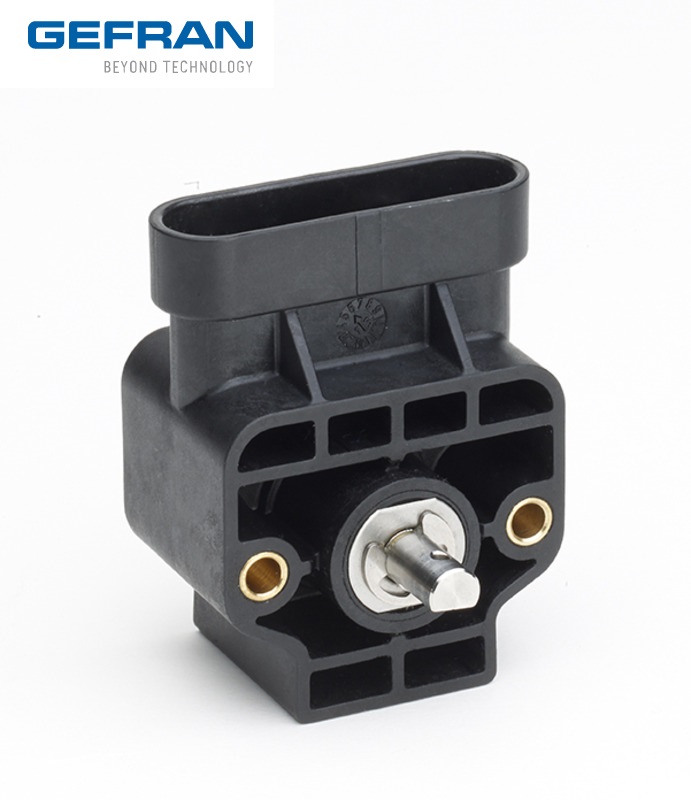

GRA Hall-effect single-turn rotary sensor with shaft
Nhà cung cấp: ANH NGHI SON
Hãng sản xuất: GEFRAN VIET NAM
Hotline
anhnghisonhcmDescription
| Measurement range |
| ±180° different values on request programmable in steps of ±15° (ONLY for analogue versions) |
| Supply voltage |
| +5Vdc (only for 0.5..4.5Vdc output); +9…+36Vdc (see output signal for right supply voltage) |
| Output signal |
| 0.5...4.5V Ratiometric (supply +5Vdc); 0.5...4.5V; 0...10V; 4...20mA; CANopen, SAE J1939 |
| Electrical connections |
| AMP Superseal 6P 282108-1; DEUTSCH 6P DT04-6P |
| Resolution and speed of rotation |
| 12 bit (analog output); 14 bit (CANopen/SAE J1939 output); 120 rpm max. |
| Linearity |
| < ± 0.5% FS |
| Working and coefficient temperature |
| -40°C ... +85°C (higher values on request); thermal drift < 50 ppm/°C |
| Vibrations |
| 20g - 10 Hz … 2000 Hz IEC 60068-2-6 |
| Shock |
| Impulsive on 3 axes; 50g 11 ms IEC 60068-2-27 |
| Electromagnetic compatibility |
| 2014/30/EU Electromagnetic Compatibility (EMC) |
| Life |
| 35 M operations (stroke ±75°) |
| IP Protection level |
| IP67 - IPX9K with female mating connector mounted AMP282090-1 (GRA-A version) and mating connector DT06-6S (GRA-D version) |
| Housing material |
| PBT |
