Mr. BảoODSL 8/V66.01-500-S12 - Optical distance sensor

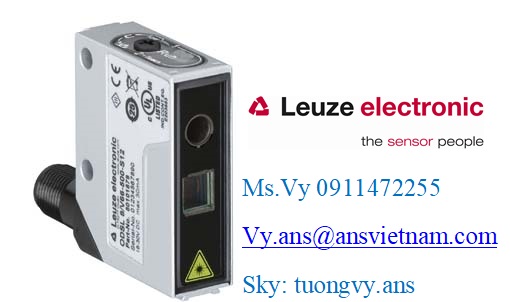

Figure can vary
+
| Part description | ODSL 8/V66.01-500-S12 - Optical distance sensor |
|---|---|
| Part no. | 50111175 |
- Technical features
- Accessories
- Downloads
-
-
Basic data
- Series8
- Type of scanning systemAgainst object
-
Optical data
- Light sourceLaser, Red
- Laser class2, IEC/EN 60825-1:2007
- Light-spot size [at sensor distance]2 mm x 6 mm
-
Measurement data
- Measurement range20 ... 500 mm
- Resolution0.1 ... 0.5 mm
- Accuracy of measurement, short range2 %
- Accuracy of measurement, distant range4 %
- Reference value, accuracy of measurementMeasurement distance
- Repeatability, short range1 %
- Repeatability, distant range3 %
- Reference value repeatabilityMeasurement distance
- Measurement time2 ... 7 ms
- ReferencingNo
- Black/white behavior1.5 %
- Optical distance measurement principleTriangulation
-
Electrical data
-
Performance data
- Supply voltage18 ... 30 V, DC
-
Outputs
- Number of analog outputs1 Piece(s)
- Number of digital switching outputs2 Piece(s)
-
Analog output 1
- TypeVoltage
-
Switching output 1
- Switching elementTransistor, Push-pull
-
Switching output 2
- Switching elementTransistor, Push-pull
-
-
Connection
-
Connection 1
- Type of connectionConnector, Turning, 90°
- Thread sizeM12
- MaterialMetal
- No. of pins5 -pin
-
-
Mechanical data
- Dimension (W x H x L)15 mm x 48 mm x 38 mm
- Housing materialMetal, Diecast zinc
- Lens cover materialPlastic
- Net weight70 g
-
Operation and display
- Type of configurationSwitch
- Operational controlsRotary switch
-
Environmental data
- Ambient temperature, operation-20 ... 40 °C
- Ambient temperature, storage-40 ... 50 °C
-
Certifications
- Degree of protectionIP 67, IP 69K
- Protection classII
- Standards appliedIEC 60947-5-2
-
Classification
- Customs tariff number90318020
- eCl@ss 8.027270801
- eCl@ss 9.027270801
- ETIM 5.0EC001825
-
