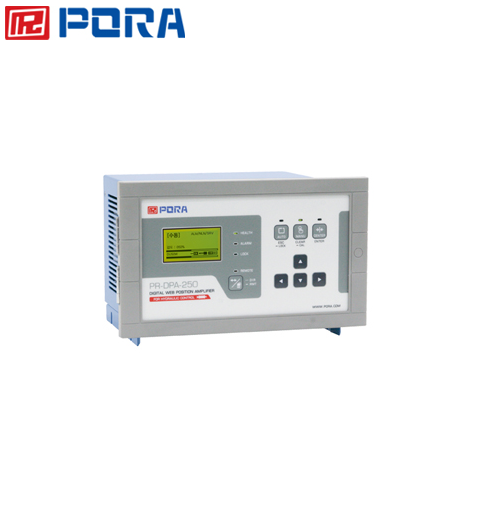

Model: PR-DPA-250 Hydraulic Epc Controller Pora

Model: PR-DPA-250 Hydraulic Epc Controller Pora

Specifications:

Display: 128x64 Graphic LCD

Operation Mode: CPC, EPC

Sensor Input: 0 ~ 5Vdc

External Input I/F Signal: Digital Input (12Vdc 10mA, Sink Type), AUTO, MANU, CENT, LEFT, RIGHT

Position Detector 0 ~ 2KΩ

Line Speed: 0 ~ 10Vdc

Control Output:  ±10Vdc(300mAdc) with Dither

Cylinder Position:  ±5Vdc load 1KΩ(Max)

Digital Contact Point: Relay output(Dry Contact) 24Vdc, 1A, Operation status(Auto,Manu,Center), Sesnor deviation/Limit detection

Power: 100 ~ 240Vac, 50/60Hz(50VA)

Operation Temperature: -10 ~ +50℃ (Completed KS Standard environment test for electronic electric, KSC-0210, KSC-0220, KSC-0221,KSC-0227)

Weight: 6Kg
