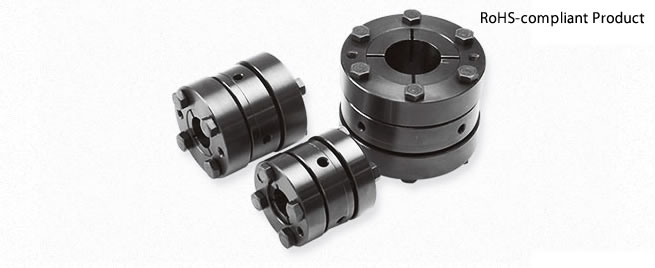

SERVORIGID

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: MIKI PULLEY VIET NAM

Liên hệ tư vấn

Mr. Bảo

bao@ansgroup.asia

0962678764

0962678764

anhnghisonhcm

SERVORIGID MIKI PULLEY  Vietnam

Inverter Miki Pulley,  DC Motors Miki Pulley,  Electoromagnetic Clutches Miki Pulley, Brakes Miki Pulley,  Position Control Miki Pulley,  ERVO FLEX Miki Pulley,  HELI-CAL Miki Pulley,  BAUMANN FLEX Miki Pulley,  SCHMIDT Coupling Miki Pulley,  CENTA FLEX Miki Pulley,  Rubber coupling Miki Pulley,  plastic coupling Miki Pulley,  ETP Bushing Miki Pulley,  TORQ-TENDER Miki Pulley,  Rubber Suspension Miki Pulley,  Coupling Miki Pulley, Miki Pulley Vietnam,

SFC-002SA2 | SFC-005SA2 | SFC-010SA2 | SFC-020SA2 |SFC-025SA2|SFC-030SA2 |SFC-035SA2 |  SFC-040SA2 | SFC-050SA2 |SFC-055SA2 | SFC-060SA2 | SFC-080SA2 | SFC-090SA2 | SFC-100SA2 | SFC-002DA2 | SFC-005DA2 | SFC-010DA2 | SFC-020DA2 | SFC-025DA2 | SFC-030DA2 | SFC-035DA2  | SFC-040DA2 | SFC-050DA2 | SFC-055DA2 | SFC-060DA2 | SFC-080DA2 | SFC-090DA2 | SFC-100DA2

ADAPTER SFC-050SA2/DA2 | ADAPTER SFC-060SA2/DA2 | Coupling SFH-150S|Coupling SFH-150S|Coupling SFH-150S|Coupling SFH-170S|Coupling SFH-170S| Coupling SFH-170S| Coupling SFH-190S| Coupling SFH-190S| Coupling SFH-190S| Coupling SFH-210S | Coupling SFH-210S |Coupling SFH-210S|Coupling SFH-220S| Coupling SFH-220S

Model Torque Misalignment Max. rotation speed ［min-1］ Static torsional stiffness ［N・m/rad］ Radial stiffness ［N/mm］ Moment of inertia ［kg・m2］ Mass ［kg］
Nominal ［N・m］ Max. ［N・m］ Parallel ［mm］ Angular ［°］ Axial ［mm］
ALS-014-Y 1.2 2.4 0.10 1 0 to ＋0.6 34100 12 200 1.91×10-7 0.007
ALS-020-Y 3 6 0.15 1 0 to ＋0.8 23800 24 210 1.08×10-6 0.018
ALS-030-Y 7.5 15 0.15 1 0 to ＋1.0 15900 73 330 6.25×10-6 0.047
ALS-040-Y 10 20 0.10 1 0 to ＋1.2 11900 760 940 3.87×10-5 0.15
ALS-055-Y 35 70 0.15 1 0 to ＋1.4 8700 1400 1160 1.66×10-4 0.35
ALS-065-Y 95 190 0.15 1 0 to ＋1.5 7400 2100 1200 3.57×10-4 0.51
ALS-080-Y 190 380 0.15 1 0 to ＋1.8 6000 4000 1430 1.06×10-3 1.01
ALS-095-Y 265 530 0.15 1 －0.5 to ＋2.0 5000 6000 2400 2.24×10-3 1.50
ALS-105-Y 310 620 0.20 1 －0.9 to ＋2.0 4500 7000 4000 3.72×10-3 2.05
