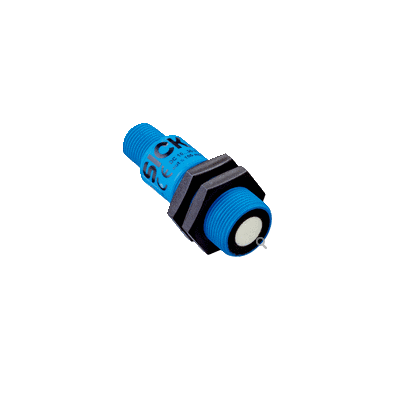

Cảm biến siêu âm  Type: UM18-218161101 Part no.: 6048420  Sick

Operating range, limiting range 120 mm ... 1,000 mm, 1,300 mm
Target Natural objects
Resolution ≥ 0.2 mm
Repeatability ± 0.15 % 1)
Accuracy ± 1 % 2)
Response time 80 ms
Switching frequency 10 Hz
Output time 20 ms
Ultrasonic frequency (typical) 200 kHz
Detection area (typical) See diagrams
Additional function Set switching mode: Distance to object (DtO) / Window (Wnd) / Object between sensor and background (ObSB), teach-in of digital output, invertible digital output, reset to factory default
