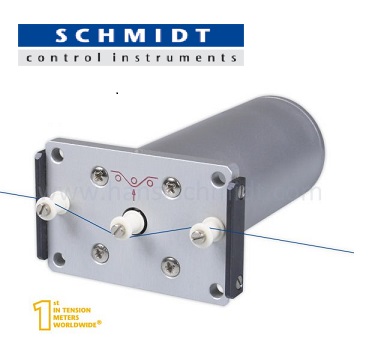

Tension Sensor TSP: 4 Tension ranges available from 0 - 50 cN up to 0 - 500 cN
Stationary electronic tension sensors with non-rotating ceramic pins for threads and fibres up to max. 500 tex
Max. line speed 6000 m/min
Tension sensor for quick and easy mounting
* Features:
Tension sensor TSP with integrated measuring amplifier and high accuracy of 1 % FS
Non-rotating, exchangeable ceramic pins for line speed up to max. 6000 m/min
Usable for threads and fibres only
Various output signals are available:
– analog: 0 – 1 V DC (standard), 0 – 10 V DC (optional)
– current: 4 – 20 mA (optional)
– analog DMS: mV/V (optional)
Easy installation, even afterwards, on existing machines
Easy calibration to customized material by operator – zero and gain calibration is required
Measuring principle – load cell with high quality strain gauge bridge
Tension sensor TSP with mechanical overload protection
Code | Description | Keyword |
TSP-50 | Hans-schmidt Electronic tension sensor TSP | Hans-schmidt Tension Sensor, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application |
TSP-100 | Hans-schmidt Electronic tension sensor TSP | Hans-schmidt Tension Sensor, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application |
TSP-200 | Hans-schmidt Electronic tension sensor TSP | Hans-schmidt Tension Sensor, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application |
TSP-500 | Hans-schmidt Electronic tension sensor TSP | Hans-schmidt Tension Sensor, Hans-schmidt Viet Nam, Hans-schmidt Textile, Garment Application |
