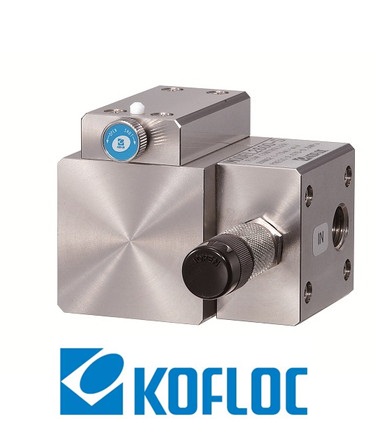

2600S/2600PVC Van kiểm soát lưu lượng Kofloc

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: KOFLOC VIET NAM

Liên hệ tư vấn

Bích Ngà

bichnga-sales@ansgroup.asia

0937 856 572

2600S/2600PVC Van kiểm soát lưu lượng Kofloc Vietnam ANSdanang

　 Model 2600-S PVC
Fluid H2O H2O
Flow rating
(at H2O calibration condition)		 1-10 ML/MIN 1-10 ML/MIN
10-100 ML/MIN 10-100 ML/MIN
0.1-1 L/MIN 0.1-1 L/MIN
Control accuracy Note 1 ±3% F.S. ±3% F.S.
Operating differential pressure 0.1 MPa or more
Operating pressure 0.1-0.5 MPa
Proof pressure 0.7 MPa
Materials of parts in contact
with fluids		 SUS 316, Viton,
fluorocarbon resin		 PVC, SUS 316, NBR, Viton
Operating temperature 15-35℃
End connection Rc 1/4 Rc 1/8
