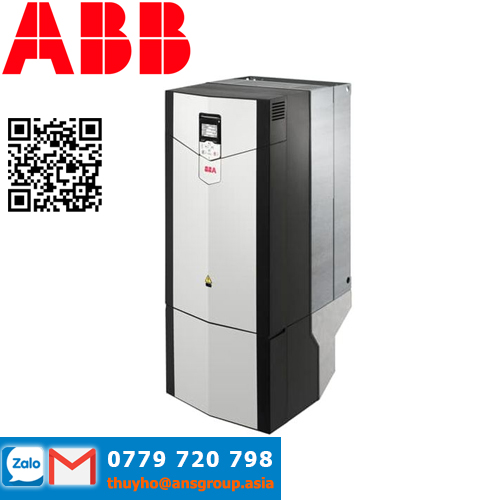

ACS880-01-061A-3 Biến tần



ACS880-01-061A-3

General Information

  • Global Commercial Alias:

    ACS880-01-061A-3

  • Product ID:

    3AUA0000108021

  • ABB Type Designation:

    ACS880-01-061A-3

  • EAN:

    6438177388432

  • Catalog Description:

    ACS880-01-061A-3 PN: 30 kW, IN: 61 A

  • Long Description:

    The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps and fans.

    The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters and I/O extension modules.



đặt hàng

  • Nước xuất xứ:

    Phần Lan (FI)
    Hoa Kỳ (US)

  • Số thuế hải quan:

    85044085

  • Mô tả hóa đơn:

    ACS880-01-061A-3 PN: 30 kW, VÀO: 61 A

  • Thực hiện để đặt hàng:

    Đúng

  • Số lượng đặt hàng tối thiểu:

    1 miếng

  • Đặt hàng nhiều:

    1 miếng

  • Chỉ trích dẫn:

    KHÔNG

  • Đơn vị đo lường bán hàng:

    cái

Thông tin vùng chứa

  • Khối lượng gộp:

    32.261 dm³

kích thước

  • Trọng lượng tịnh của sản phẩm:

    18,6 kg
    41,006 lb

  • Độ sâu / Chiều dài của sản phẩm:

    274 mm
    10,787 inch

  • Chiều cao ròng của sản phẩm:

    580mm _

  • Chiều rộng lưới của sản phẩm:

    203 mm
    7,992 inch

  • Độ sâu/Chiều dài cấp 1 của gói hàng:

    691mm

  • Chiều cao gói cấp 1:

    329 mm

  • Chiều rộng gói cấp 1:

    290 mm

  • Đơn vị gói cấp 1:

    1 thùng

Kỹ thuật

  • Số giai đoạn:

    3

  • Mức độ bảo vệ:

    IP21

  • Loại bao vây NEMA:

    Loại 1

  • Độ cao:

    4000 mét

  • Âm thanh dB (A):

    64dB(A)

  • Tần suất ( f ):

    48 ... 63Hz

  • Kích thước khung hình:

    R4

  • Điện áp đầu vào (U in ):

    380 ... 415 V

  • Kiểu lắp:

    treo tường

  • Giao thức truyền thông:

    CÓ THỂ
    DeviceNet
    EtherNet/IP
    LON
    MODBUS
    Hệ thống xe buýt khác
    PROFIsafe
    PROFIBUS
    PROFINET IO

  • Số giao diện phần cứng:

    Ethernet công nghiệp 0
    Khác 4
    Song song 0
    PROFINET 0
    RS-232 0
    RS-422 0
    RS-485 1
    TTY nối tiếp 0
    USB 1

  • Bao gồm:

    Có bộ điều khiển
    Không có giao diện quang
    Có kết nối PC

  • Đầu vào analog:

    2

  • Đầu ra tương tự:

    2

  • Số đầu vào/đầu ra kỹ thuật số:

    2/6

  • Dòng điện đầu ra, Sử dụng cho mục đích nặng ( I HD ):

    45 A

  • Dòng điện đầu ra, Sử dụng quá tải ( I LD ):

    58 A

  • Đầu ra hiện tại, sử dụng bình thường ( I ​​n ):

    61 Một

  • Công suất đầu ra, Sử dụng ở mức độ nặng ( P HD ):

    22 mã lực

  • Công suất đầu ra, Sử dụng quá tải nhẹ ( P LD ):

    30 mã lực

  • Công suất đầu ra, Sử dụng bình thường ( P n ):

    30 mã lực

  • Công suất biểu kiến:

    42kV·A

  • Mức độ hiệu quả:

    IE2

  • Mất dự phòng:

    28 W

  • Hiệu suất mô-đun ổ đĩa hoàn chỉnh (61800-9-2):

    Tần số điểm hoạt động / Hiện tại

    Tổn thất tuyệt đối

    Mất mát tương đối

    Hiệu quả

    0/25 %

    212 W

    0,5%

    91,3 %

    0/50 %

    291 W

    0,7%

    93,7%

    0/100 %

    543 W

    1,3 %

    94,1 %

    50/25 %

    232 W

    0,5%

    95,2 %

    50/50 %

    334 W

    0,8 %

    96,4 %

    50/100 %

    643 W

    1,5 %

    96,5%

    90/50 %

    385 W

    0,9 %

    97,7%

    90/100 %

    818 W

    1,9 %

    97,5%

  • Nhiệt độ đánh giá:

    Tối đa 40°C

thông tin thêm

  • Loại sản phẩm chính:

    ACS880-01

  • Tên sản phẩm:

    bộ chuyển đổi tần số

phân loại

  • Dòng sản phẩm:

    ACS880

  • TIẾT 7:

    EC001857 - Bộ biến tần =< 1 kV

  • UNSPSC:

    39122001
