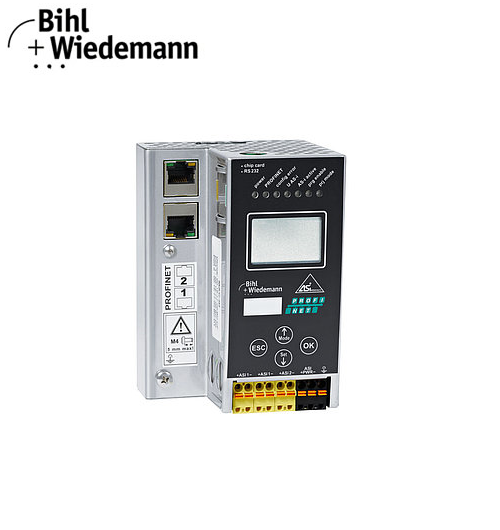

Model: BWU2238 ǀ ASi-3 PROFINET Gateway

Model: BWU2238 ǀ ASi-3 PROFINET Gateway

Features:

Type: PROFINET ASi

Model: Gateway

Protection rating: IP20

Fieldbus interface: PROFINET

Number of ASi networks, number of ASi Master: 2 ASi networks, 2 ASi Masters

1 power supply, 1 gateway for 2 ASi networks, inexpensive power supplies: yes, max. 4 A/ASi network

Diagnostic and configuration interface: Ethernet fieldbus + RS 232

Recognition of duplicate ASi addresses: yes

ASi fault detector: yes

Programming in C: optional
