Product Information

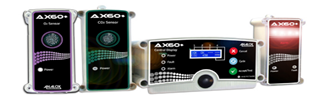

The Ax60+ is a wall-mountable gas safety device
for monitoring oxygen and carbon dioxide. Based
on the popular Ax60 CO2 detector, the new Ax60+
can also be supplied with O2 sensor modules which
provides an early warning of both oxygen depletion
and oxygen enrichment. The CO2 and O2 sensors are
interchangeable and can be fully integrated as part of
a multi-point, multi-gas detection and alarm system.
The CO
2 sensor is set by default to trigger a
low-level alarm at 1.5% CO2, an evacuation alarm at
3% CO2 and a time-weighted average alarm of 0.5%
CO2 measured over eight hours. The O2 sensor is set
by default to trigger low-going alarms at both 19.5%
and at 18% and a high-going alarm at 23%. The alarm
setpoints can be changed by the user. Warnings are
announced by high-visibility strobe lights and
high-volume sounders.

Key Features

Multi-point, multigas,
distributed
monitoring
system
4-channel flexibility
allowing any fixed
sensor combination
Central display unit
for remote operation
and control
User-configurable
alarms, setpoints and
relay outputs
Built-in software
for operation and
maintenance tasks

Specification
System
Warm-up time: 40 seconds
Operating temperature range: −5 °C to +50 °C, +23 °F  to +122 °F
Approvals: CE, EN50270, IEC 61010 (UL), DIN 6653 (TUV)
Warranty: 5 years electronics
Central Display
Display: LCD dot matrix (backlit)
Relays: 2 x configurable relays, rated for 1 A/30 V AC/DC
IP Rating: IP54
Maximum power consumption: <24 W
Power supply accepts inputs from: 100 - 200V ~ 1A
 Alarm
Strobe: white LED strobe > 100 cd
(optional blue, red and amber filters)
Sounder: min 80 dBA @3 m (9.8 feet)
IP Rating: IP55
CO2 Sensor
Gas detected: carbon dioxide
Measurement technique: infrared
Range: 0.1% to 5%
Default alarm setpoints: 0.5% (8 hour TWA), 1.5%, 3.0%
IP Rating: IP55
Warranty: 5 years
Response time: (T90) <30 seconds
