Mr. BảoBPS 8 SM 100-05 - Bar code positioning system

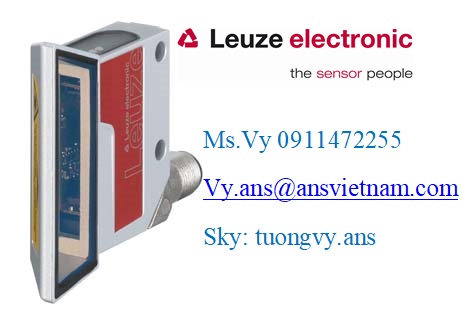

Figure can vary
+
| Part description | BPS 8 SM 100-05 - Bar code positioning system |
|---|---|
| Part no. | 50107326 |
- Technical features
- Accessories
- Downloads
-
-
Basic data
- SeriesBPS 8
- Data telegramBinary protocol 1
-
Optical data
- Depth of field60 ... 120 mm
- Light sourceLaser, Red
- Laser class2, IEC/EN 60825-1:2007
- Light beam exitLateral with deflecting mirror
-
Measurement data
- Measurement range0 ... 10,000,000 mm
- Reproducibility (1 sigma)1 mm
- Measurement value output3.3 ms
- Max. traverse rate4 m/s
-
Electrical data
-
Performance data
- Supply voltage4.75 ... 5.5 V, DC
- Current consumption, max.250 mA
-
Inputs/outputs selectable
- Number of inputs/outputs selectable1 Piece(s)
-
-
Interface
- TypeRS 232
-
Service interface
- TypeRS 232
-
RS 232
- FunctionService
-
Connection
-
Connection 1
- Type of connectionConnector
- FunctionConnection to device
- Thread sizeM12
- No. of pins5 -pin
-
-
Mechanical data
- Dimension (W x H x L)58 mm x 75 mm x 17.4 mm
- Housing materialMetal, Diecast zinc
- Lens cover materialGlass
- Net weight120 g
- Type of fasteningMounting thread, Dovetail grooves, Through-hole mounting, Via optional mounting device
-
Operation and display
- Type of displayLED
-
Environmental data
- Ambient temperature, operation0 ... 40 °C
- Ambient temperature, storage-20 ... 60 °C
- Relative humidity (non-condensing)0 ... 90 %
-
Certifications
- Degree of protectionIP 67, EN 60529 with various connectors or screwed-on caps
- Protection classIII
- Certificationsc UL US
- US patentsUS 6,822,774 B
-
Classification
- Customs tariff number84719000
- eCl@ss 8.027280190
- eCl@ss 9.027280190
-
