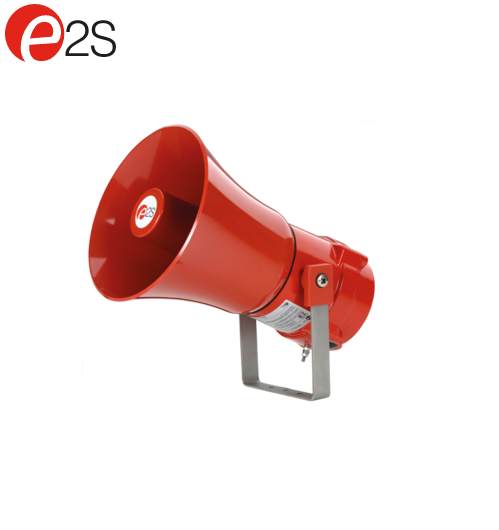

Model: BExL25DFV100AS2A1R Còi điện Explosion Proof PA Loudspeakers 25W E2S

SPL:

105dB +/-3dB @ 1w @ 1m (Pink)
119dB +/-3dB @ 25w @ 1m (Rated)

Rated power:

25 Watts RMS

70v line tappings:

25w / 12.5w / 6w / 2w tappings
(z=196 Ohms /392 Ohms /
816.67 Ohms / 2.45k Ohms)

100v line tappings:

25w / 12.5w / 6w / 2w tappings
(z=400 Ohms /800 Ohms /
1.67k Ohms / 5k Ohms)

Low impedence:

8 Ohm or 16 Ohm

Dispersion:

130° @ 1kHz & 32° @ 4kHz

Frequency range:

300Hz to 8000 Hz

DC Line monitoring:

2.2µF Capacitor (Transformer)
470µF Capacitor (Impedance)

Ingress protection:

IP66/67

Enclosure matl:

Marine grade copper free LM6 Aluminium

Enclosure finish:

Chromate & powder coated finish – anti-corrosion.

Colour:

RAL3000 Red
Grey RAL7038
Special – available on request

BExL25 flare:

High impact UL94 V0 & 5VA FR ABS

Cable entries:

Dual M20 ISO (one stopping plug inc)

Terminals:

0.5 – 2.5mm² (20-14 AWG)

Relative humidity:

95% – Additional tropicalisation is recommended for applications where both high relative humidity and high ambient temperatures exist
