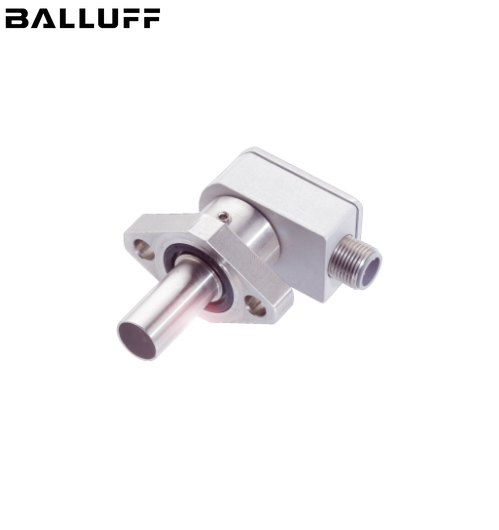

Model: BHS003H BES 516-300-S295/0.912"-S4/ Cảm biến cảm ứng (Pressure-rated inductive sensors)/ Balluff

    Model: BHS003H BES 516-300-S295/0.912"-S4/ Cảm biến cảm ứng (Pressure-rated inductive sensors)/ Balluff

Key features:

Dimension: 51 x 48 x 23.16 mm

Style: D12.7

Installation: for flush mounting

Range: 2 mm

Switching output: PNP normally open (NO)

Switching frequency: 10 Hz

Housing material: Stainless steel (1.4104) Zinc, Die casting

Surface protection: nickel plated

Material sensing surface: Ceramic

Connection: Connector, M12x1-Male, 4-pin

Operating voltage Ub: 10...30 VDC

Ambient temperature: -25...70 °C

Pressure rating max.: 207 bar

Magnetic field immune: magnetic field immune (AC/DC)

    IP rating: IP67
