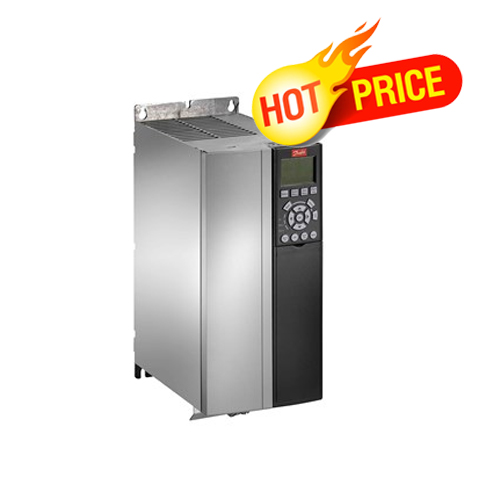

Bộ chuyển đổi tần số FC202P11KT4E20H2XGXXXXLXX1 / XAXBXCXXXXDX Danfoss
Nhà cung cấp: ANS Vietnam
Hãng sản xuất: DANFOSS VIET NAM
Ứng dụng sản phẩm: Automotive
Mr. BảoDanfoss Vietnam,Bộ chuyển đổi tần số FC202P11KT4E20H2XGXXXXLXX1 / XAXBXCXXXXDX Danfoss
FC-202P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX - 131F6639
Bộ chuyển đổi tần số
FC-202P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX
VLT® AQUA Drive FC-202
(P11K) 11 KW / 15 HP, Ba pha
380 - 480 VAC, (E20) IP20 / Khung
(H1) RFI Lớp A1 / B (C1)
Không có phanh chopper
Lộc đồ họa. Tiếp theo Bảng điều khiển
Không phủ PCB, Không có tùy chọn chính
Bản phát hành mới nhất std. SW.
Không có A Option, Không B Option
Không có tùy chọn C1, Không có tùy chọn D
Khung: B3
Các tùy chọn khác theo mã Model
Mã mẫu:
FC-202P11KT4E20H1XGXXXXSXXXXAXBXCXXXXDX
Danfoss VLT® AQUA Drive chuyên dụng cho các ứng dụng nước và nước thải. Với một loạt các tính năng tiêu chuẩn và tùy chọn mạnh mẽ, VLT® AQUA Drive cung cấp chi phí sở hữu tổng thể thấp nhất cho các ứng dụng nước và nước thải.
Product details
Gross weight |
|
12.11 kg |
|
Net weight |
|
11.14 kg |
|
Volume |
|
57.75 l |
|
EAN |
|
5702427465343 |
|
Sales restriction control
Matr grp for sales restriction |
0001 |
No grouping |
|
VLT® AQUA DRIVE FC 200 SERIES
Product View (Switch) |
GLBL |
Global (Standard) |
|
Product Group |
FC- |
VLT® AQUA Drive FC- |
|
Series |
202 |
202 |
|
Power Rating |
P11K |
(P11K) 11 KW / 15 HP |
|
Phase |
T |
Three phase |
|
Mains Voltage |
4 |
380 - 480 VAC |
|
Enclosure |
E20 |
(E20) IP20 / Chassis |
|
RFI Filter |
H1 |
(H1) RFI Class A1/B (C1) |
|
Brake - Safe Stop |
X |
No brake chopper |
|
LCP |
G |
Graphical Loc. Cont. Panel |
|
Coating PCB |
X |
Not coated PCB |
|
Mains Option |
X |
No Mains Option |
|
Adaptation A |
X |
Standard Cable Entries |
|
Adaptation B |
X |
No adaptation |
|
Software Release |
SXXX |
Latest release std. SW. |
|
Software Language Pack |
X |
Standard Language Pack |
|
A Option |
AX |
No A Option |
|
B Option |
BX |
No B Option |
|
C0 Option MCO |
CX |
No C0 option |
|
C1 Option |
X |
No C1 option |
|
C Option Software |
XX |
No software option |
|
D Option |
DX |
No D option |
|
Frame Size |
B3 |
B3 |
|
Typecode Part 1 |
|
FC-202P11KT4E20H1XGX |
|
Typecode Part 2 |
|
XXXSXXXXAXBXCXXXXDX |
|
Product Catalog |
NO_VIEW |
NO VIEW |
|
Power 180% (HO) [KW] |
|
NV |
|
Power 160% (HO) [KW] |
|
7.5 |
|
Power 150% (HO) [KW] |
|
NV |
|
Power 110% (NO) [KW] |
|
11 |
|
Height [mm] |
|
399,0 |
|
Height w/ Regen/Loadshare [mm] |
|
NV |
|
Width w/ no C options [mm] |
|
165,0 |
|
Depth [mm] |
|
249,0 |
|
Depth with Option A/B [mm] |
|
262,0 |
|
kVA |
|
16.6 |
|
Power Loss NO [W] |
|
392 |
|
Power Loss NO [W] |
|
392 |
|
Power Loss HO [W] |
|
291 |
|
Power Loss HO [W] |
|
291 |
|
Continuous Current (NO) [A] |
|
24 |
|
Intermittent Current (NO) [A] |
|
26.4 |
|
Continuous Current (NO) [A] |
|
21 |
|
Intermittent Current (NO) [A] |
|
23.1 |
|
Continuous Current (HO) [A] |
|
16 |
|
Intermittent Current (HO) [A] |
|
25.6 |
|
Continuous Current (HO) [A] |
|
14.5 |
|
Intermittent Current (HO) [A] |
|
23.2 |
|
Calculated Gross Weight |
|
12 |
|
Calculated Net Weight [kg] |
|
11.7 |
|
Material Gross Weight |
|
12.11 |
|
Material Net Weight |
|
11.14 |
|
Vendor |
ERR01 |
Cannot Determine Vendor |
|
Recommended Factory |
ERR01 |
Cannot Determine Vendor |
|
Modelcode01 |
|
FC-202P11KT4E20H1XGX |
|
Modelcode02 |
|
XXXSXXXXAXBXCXXXXDX |
|
