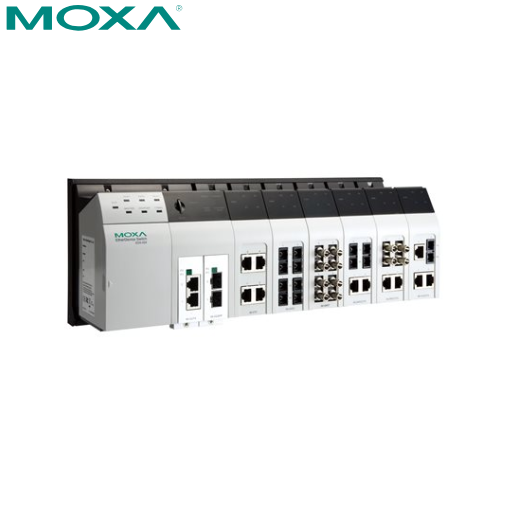

Bộ chuyển mạch (Layer 3 modular managed Ethernet switch system with 6 slots)_Model: EDS-82810G_Moxa Viet Nam

Bộ chuyển mạch (Layer 3 modular managed Ethernet switch system with 6 slots)

Model: EDS-82810G

Hãng Moxa

Đặc điểm chung:

• Layer 3 switching functionality to move data and information across networks

• Command line interface (CLI) for quickly configuring major managed functions

• Supports advanced VLAN capability with Q-in-Q tagging

• Software-based IEEE 1588 PTPv2 (Precision Time Protocol) for time synchronization of networks

• DHCP Option 82 for IP address assignment with different policies

• Supports EtherNet/IP and Modbus TCP protocols for device management and monitoring

• Compatible with PROFINET protocol for transparent data transmission

• IGMP snooping and GMRP for filtering multicast traffic

• IEEE 802.1Q VLAN and GVRP protocol to ease network planning

• Digital inputs for integrating sensors and alarms with IP networks

• QoS (IEEE 802.1p/1Q and TOS/DiffServ) to increase determinism

• Port Trunking for optimum bandwidth utilization

• Access Control Lists (ACL) increase the flexibility and security of network management

• SNMPv1/v2c/v3 for different levels of network management

• RMON for proactive and efficient network monitoring

• Bandwidth management to prevent unpredictable network status

• Lock port function for blocking unauthorized access based on MAC address

• Port mirroring for online debugging

• Automatic warning by exception through email and relay output

• Configurable by Web browser, Telnet/serial console, CLI, Windows utility, and ABC-01 automatic backup configurator

• Redundant, dual DC power inputs
