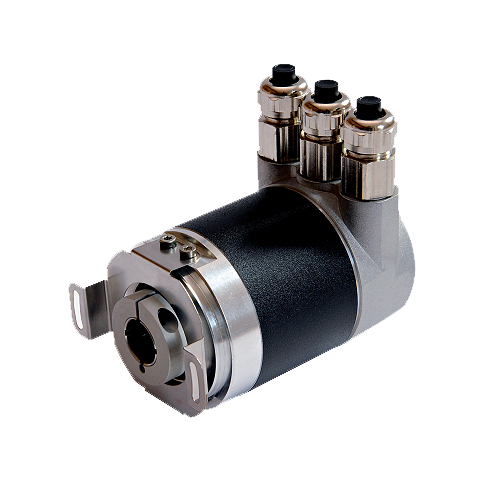

P+F Vietnam,Bộ mã hóa PSM58N-F1AAGR0BN-1213 ABSDIG P+F

Bộ mã hóa đa hướng tuyệt đối PSM58
Vỏ tiêu chuẩn công nghiệp ∅58 mm
Giao diện PROFIBUS
Đa tốc độ 30 bit
Truyền tốc độ
Mở rộng chức năng mở rộng quy mô
Công tắc giới hạn có thể lập trình
Chế độ vận hành
Trục rỗng lõm

Datasheet excerpt: Technical data of PSM58

General specifications
Detection type		photoelectric sampling
Device type		Multiturn absolute encoder
Functional safety related parameters
MTTF_d		70 a
Mission Time (T_M)		20 a
L₁₀		1.9 E+11 at 6000 rpm and 20/40 N axial/radial shaft load
Diagnostic Coverage (DC)		0 %
Electrical specifications
Operating voltage		10 ... 30 V DC
No-load supply current		max. 230 mA at 10 V DC max. 100 mA at 24 V DC
Power consumption		max. 2.5 W
Time delay before availability		< 1000 ms
Linearity		± 2 LSB at 16 Bit, ± 1 LSB at 13 Bit, ± 0,5 LSB at 12 Bit
Output code		binary code
Code course (counting direction)		programmable, cw ascending (clockwise rotation, code course ascending) cw descending (clockwise rotation, code course descending)
Interface
Interface type		PROFIBUS
Resolution
	Single turn	up to 16 Bit
	Multiturn	14 Bit
	Overall resolution	up to 30 Bit
Transfer rate		0.0096 ... 12 MBit/s
Standard conformity		PNO profile 3.062, RS-485
Connection
Terminal compartment		in removable housing cover
Standard conformity
Degree of protection		DIN EN 60529, IP65 IP66 (with shaft seal)
Climatic testing		DIN EN 60068-2-30 , no moisture condensation
Emitted interference		EN 61000-6-4:2007
Noise immunity		EN 61000-6-2:2005
Shock resistance		DIN EN 60068-2-27, 100 g, 6 ms
Vibration resistance		DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz
Approvals and certificates
UL approval		cULus Listed, General Purpose, Class 2 Power Source
Ambient conditions
Operating temperature		-40 ... 85 °C (-40 ... 185 °F)
Storage temperature		-40 ... 85 °C (-40 ... 185 °F)
Mechanical specifications
Material
	Combination 1	housing: powder coated aluminum flange: aluminum shaft: stainless steel
	Combination 2 (Inox)	housing: stainless steel flange: stainless steel shaft: stainless steel
Mass		approx. 600 g (combination 1) approx. 1200 g (combination 2)
Rotational speed		max. 12000 min ^-1
Moment of inertia		30 gcm²
Starting torque		≤ 3 Ncm (version without shaft seal)
Tightening torque, fastening screws		max. 1.8 Nm
Shaft load
	Angle offset	± 0.9 °
	Axial offset	static: ± 0.3 mm, dynamic: ± 0.1 mm
	Radial offset	static: ± 0.5 mm, dynamic: ± 0.2 mm

Classifications

System	Classcode
ECLASS 11.0	27270502
ECLASS 10.0.1	27270502
ECLASS 9.0	27270502
ECLASS 8.0	27270502
ECLASS 5.1	27270502
ETIM 8.0	EC001486
ETIM 7.0	EC001486
ETIM 6.0	EC001486
ETIM 5.0	EC001486
UNSPSC 12.1	39121527
