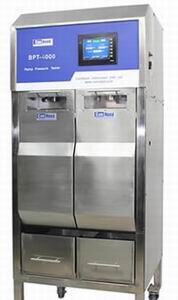

BPT-4000 Ramp Pressure Tester (automatic 2 stations)
Xuất sứ: CHINA
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: CANNEED INSTRUMENT VIETNAM
Ứng dụng sản phẩm: Automotive
Mr. Bảo*) Mô tả:
BPT-4000 Ramp Pressure Tester is an advanced testing instrument for pressure testing glass containers,also can be used to test the burst value.
Two positions,high efficiency.PLC controlled,LCD touch screen display.Automatic clamping system,servo control pressure process.Display real-time data,test and save data automatically.
Two test ways: :linear pressurization and pressure maintaining.Users can choose testing way as to actual demands.
Advantages:
*Industry standard
*Two positions,high efficiency
*Automatic clamping system
*PLC controlled
*Automatic save data up to 1000
*Compensate pressure seal
*Safety interlocks on test chamber doors
*RS232 data output
*With calibration funtion
Technical data:
*Measure range:0-6 MPa
*Resolution:0.01Mpa
*Water supply:0.1~0.3 Mpa
*Woking temperature:0-50º C
*Power supply:110-120 or 220/240V, 50/60 Hz
*Output interface:RS232
*Dimensions:830mm×580mm×1600mm
*Weight:120KG
Technical data (Changes reserved):
Measure range : 0-57bar
Resolution : 0.1 bar
Power supply : 115 V / 230 V, 50-60Hz
Dimensions : 830mm×580mm×1600mm (W x D x H )
Weight : 120 kg
