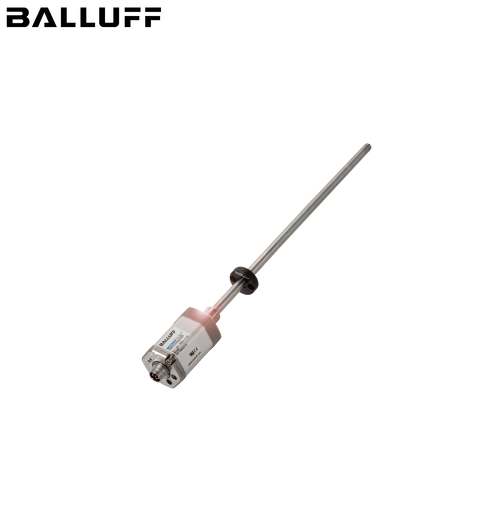

BTL04N9 BTL5-E17-M0075-B-NEX-S32 Cảm biến vị trí Magnetostrictive Sensors Balluff
Xuất sứ: Germany
Nhà cung cấp: ANS Đà Nẵng
Hãng sản xuất: BALLUFF VIET NAM
Mr. BảoModel: BTL04N9 BTL5-E17-M0075-B-NEX-S32 Cảm biến vị trí Magnetostrictive Sensors Balluff
Features:
Style: Rod Series Ex
Mounting: Threaded flange M18x1.5
Housing material: Aluminum
Magnets, number max.: 1
Connection: Cable, 10.00 m, PUR
Analog output: Analog, current 20…4 mA
Measuring range: 75 mm
Resolution: ≤ 0.66 µA
Non-linearity max.: ±100 µm
Repeat accuracy: 0.66 µA
Operating voltage Ub: 20...28 VDC
Ambient temperature: -20...60 °C
IP rating: IP67
Approval/Conformity: CE, EAC, WEEE
Ex category: ATEX: 3G (EPL Gc)
