Cảm biến an toàn (SLE46CI-40.K2/4P-M12 - Single beam safety device receiver)

Xuất sứ: Germany

Nhà cung cấp: ANS Đà Nẵng

Hãng sản xuất: LEUZE VIET NAM

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

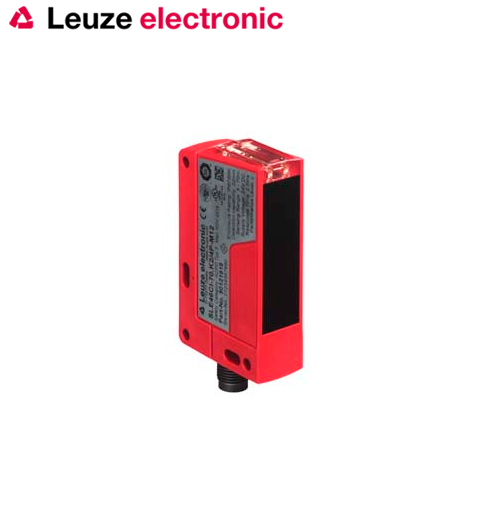

Cảm biến an toàn (SLE46CI-40.K2/4P-M12 - Single beam safety device receiver) - Leuze Electronic

Part no.: 50121921

Technical features:

  • Series: 46C
  • Functions: Alignment indicator, Diagnostic output
  • Type: 2, IEC/EN 61496, in combination with a suitable test monitoring unit, e.g. MSI-TR1B
  • SIL: 1, IEC 61508, in combination with a suitable test monitoring unit, e.g. MSI-TR1B
  • SILCL: 1, IEC/EN 62061, in combination with a suitable test monitoring unit, e.g. MSI-TR1B
  • Performance Level (PL): c, EN ISO 13849-1:2008, In combination with MSI-TRMB safety relay
  • MTTFd: 400 years, EN ISO 13849-1
  • Mission time: 20 years, EN ISO 13849-1
  • Protective circuit: Polarity reversal protection, Short circuit protected
  • Supply voltage UB: 24 V, DC, -20 ... 20 %, Incl. residual ripple
  • Residual ripple: 10 %, From UB
  • Open-circuit current: 0 ... 15 mA
