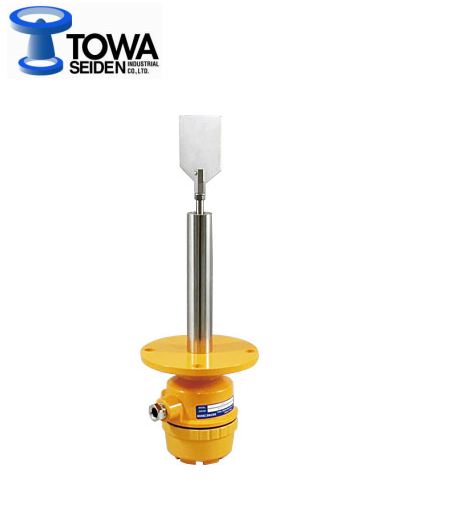

Cảm biến báo mức dạng cánh xoay (Rotary paddle type level switch)
Xuất sứ: Japan
Nhà cung cấp: ANS Da Nang
Hãng sản xuất: TOWA SEIDEN VIET NAM
Mr. BảoCảm biến báo mức dạng cánh xoay (Rotary paddle type level switch) - Towa Seiden
Model: PRL-101
Standard specifications:
*Power voltage 100/110V AC 50/60Hz, or 200/220V AC 50/60Hz
*Attaching method Flange attachment JIS 5K65A
*Power consumption 2.5W
*Contact output 1C contact 250V AC 5A (resistance load)
*Detection torque (*1) About 10.0 N cm
*Slip torque (*2) About 30.0 N cm
*Rotation speed 1 rpm
*Material:
+Main body case, flange: aluminum casting
+Main shaft, blade: SUS304
+Seal: nitrile rubber
*Operating temperature:
+Inside the tank: 70 C max.
+Outside the tank: 55 C max.
*Operating pressure Inside the tank: 0 - 196 kPa
*Paint color Munsell 10YR7.5/14
