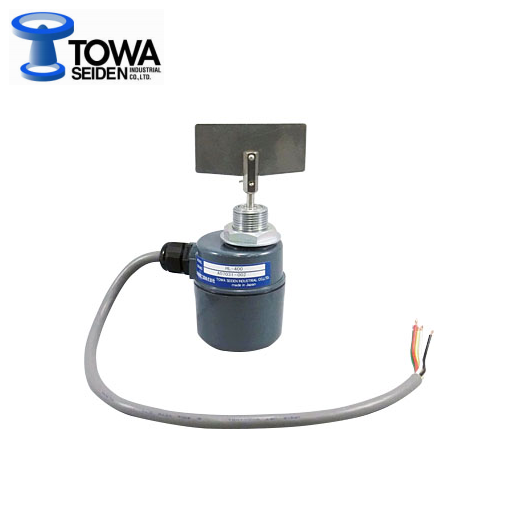

Cảm biến báo mức (Paddle Type Level Switch)_Model: HL-400

Cảm biến báo mức (Paddle Type Level Switch)-Towa Seiden Viet Nam

Model: HL-400

Thông tin kỹ thuật cơ bản:

*Supply voltage: +AC100/110V 50/60Hz

                         +AC200/220V 50/60Hz

                         +Manufactured based on your preferred voltage

*Mount:  Screw-in PF 3/4"

*Power consumption: 1.5W

*Contact output: 1C contact 250V AC6A(resistance load)

*Detection torque: Approx 4.9N cm

*Slip torque: Approx 24.5 29.4N cm

*Temperature ranges: +Tank inside Max 60⁰C

                                   +Tank outside Max55⁰C

*Painted color: Munsell 7.5BG 4/1.5

*Lead wire: VCT0.75 sq with 5-core 500mm
