Model: DMT152 A1DCE1XA33EA1X ǀ Cảm biến đo mật độ điểm sương

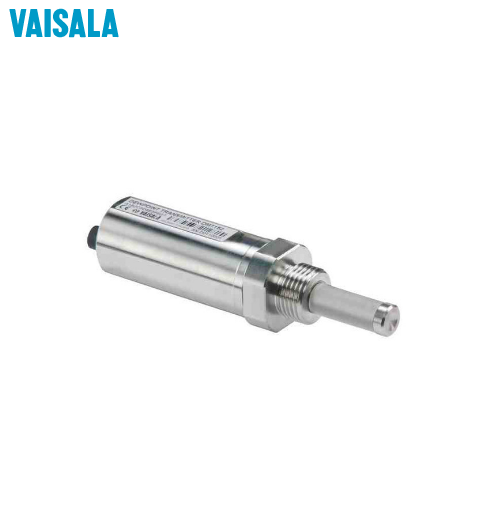

Cảm biến đo điểm sương (Low Dewpoint Transmitter) - Vaisala

Model: DMT152-C1DBY11A400A1X

Basic Features:

- Calibrated dewpoint measurement range -80 ... -10 °C Td, output range -100 ... +20 °C Td.

- Output in Td* and ppm.

- DRYCAP® polymer sensor with auto-calibration and sensor purge ensures long term stability.

- Small size to fit in tight installations.

- Two analog output channels, selectable from 0 … 20 mA / 4 ... 20 mA and 0 … 5 V / 0 … 10 V.

- Configurable alarm modes for analog outputs.

- Digital output: RS-485.

- Serial line connection also via USB serial interface cable.

- Simultaneous use of analog and digital output possible.

- Field check suitability with DM70 hand-held meter.

- Optional sampling cells with different installation options available as DMT152 installation accessories.

- LED cable option that enables a visual indication of transmitter status: LED lit when measurement is frozen (for example, purge active), blinking for malfunction alarm
