Đại lý FMS Vietnam,Cảm biến lực căng CR208 FMS, CR208 FMS, FMS Vietnam,Cảm biến lực căng CR208,CR – Compact force sensor with flexible installation options for pulley

Installation Instruction UMGZ

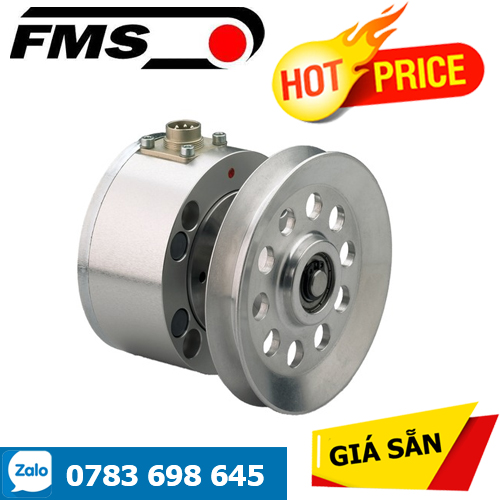

Đại lý FMS Vietnam,Cảm biến lực căng CR208 FMS

CR – Compact force sensor with flexible installation options for pulley

Mã hàng: CR208
Tên sản phẩm: Cảm biến lực căng – dành cho pulley
Lực norminal (N): 50, 125, 250, 500, 1000, 1500
Đường kính trong của pulley: 22 mm
Hãng sản xuất: FMS Technology
Xuất xứ: Thụy Sỹ
Link sản phẩm: https://www.fms-technology.com/fileadmin/import/force_sensor-series/Datasheet_CRSeries_fms.pdf

Mô tả chung:

Cảm biến lực căng CR208 với kích thước nhỏ gọn và các tùy chọn lắp đặt linh hoạt, được thiết kế để đo lực căng trên dây chuyền xử lý vật liệu liên tục cho vật liệu sợi. Sản phẩm phù hợp với nhiều loại ròng rọc tiêu chuẩn khác nhau nên khả năng lắp đặt linh hoạt.

Lưu ý: FMS không cung cấp ròng rọc tiêu chuẩn.

Đặc tính riêng:

Độ nhạy: 1.8 mV/V
Dung sai độ nhạy <± 0.2%
Độ chính xác ± 0.5%
Phạm vi nhiệt độ -10 đến 60 ° C (14 đến 140 F)
Nguồn điện 1 đến 10 VDC
Bảo vệ quá tải lên đến 10 lần lực norminal
Cấp bảo vệ: IP42
Dải đo 30: 1

Lợi ích đem lại:

Dễ dàng lắp đặt các ròng rọc tiêu chuẩn
Phù hợp với nhiều ứng dụng khác nhau
Kết quả đo chính xác
Không cần thay đổi thiết kế máy tiêu chuẩn cho các ứng dụng đặc biệt
Mạnh mẽ và bền bỉ

Ứng dụng:

Sử dụng tại tất cả ứng dụng vật liệu sợi: dây & cáp, chỉ trong ngành lốp xe, dệt….

Các dòng sản phẩm tương tự:

https://www.fms-technology.com/en/productfinder/detail/force-sensor/CR

CR210, CR208
