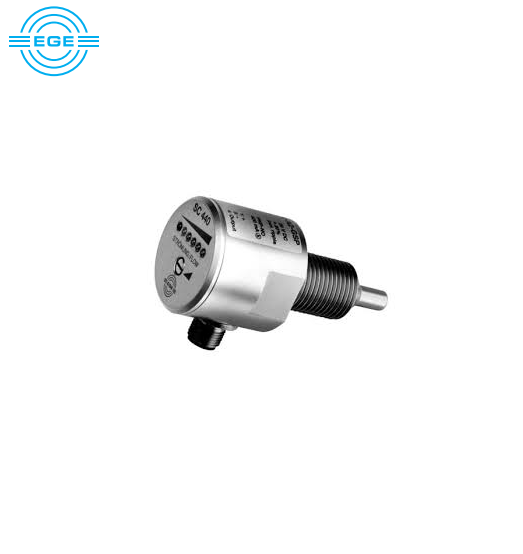

Cảm biến lưu lượng (Flow sensor)
Xuất sứ: Germany
Nhà cung cấp: ANS Da Nang
Hãng sản xuất: EGE ELEKTRONIK VIETNAM
Mr. BảoCảm biến lưu lượng (Flow sensor)
Model: SC 440-A4-GSP (Id-no: P10521)
Specifications
|
Type |
SC 440-A4-GSP |
|
Supply voltage [V] |
24 DC±20% |
|
Current consumption [ mA] |
70 |
|
Switching current [mA] |
400 (20⁰C) |
|
Ambient temperature [ ⁰C] |
-20...+80 |
|
Medium temperature [ ⁰C] |
-20...+80 |
|
Temperature gradient [K/min] |
250 |
|
Start-up time typ. [s] |
8 (2…15) |
|
Reaction time typ. [s] |
2 (1…13) |
|
Compressive strength [bar] |
100 |
|
Sensor material |
AISI 360 Ti |
|
Housing material |
Stainless steel |
|
Display flow |
LED-array |
|
Protection [EN 60529] |
IP67 |
|
Connection |
M12 connector |
