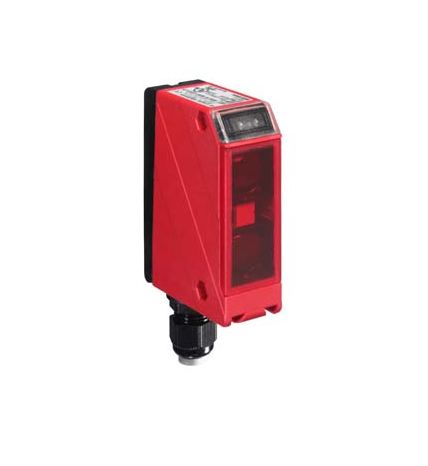

Model: HRT 96K/R-1690-1200-25 ǀ Cảm biến quang
Basic data
Series: 96
Operating principle: Diffuse reflection principle with background suppression
Optical data
Operating range, white 90%: 0.1 ... 1.2 m
Operating range, gray 18%: 0.1 ... 1.1 m
Operating range, black 6%: 0.1 ... 1 m
Operating range limit, white 90%: 0.1 ... 1.8 m
Operating range limit, gray 18%: 0.1 ... 1.6 m
Operating range limit, black 6%: 0.1 ... 1.35 m
Light source: LED, Infrared
Electrical data
Supply voltage UB: 20 ... 230 V, AC/DC
Residual ripple: 0 ... 15 %, From UB
Connection
Type of connection: Terminal
No. of pins: 5 -pin
