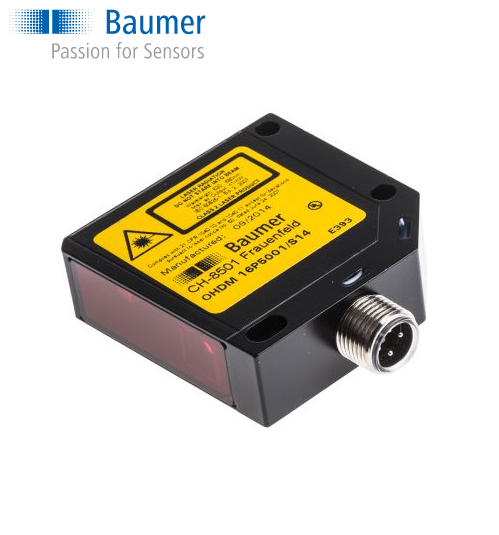

Cảm biến quang (Photoelectric Sensor)_Model: OHDM 16P5001/S14

Cảm biến quang (Photoelectric Sensor) - Baumer

Model: OHDM 16P5001/S14

Specifications:

Sensor Style: Block

Detection Type: Diffuse

Detection Range: 25 → 300 mm

Output Type: PNP

Electrical Connection: 4-Pin M12 Connector

Maximum DC Voltage: 30V

Light Source: Laser Light

IP Rating: IP67

Maximum Current: 200 mA

Response Time: <0.6 ms

Housing Material: Die Cast Zinc

Minimum Operating Temperature: -10°C

Maximum Operating Temperature: +50°C

              Series: OHDM
