OUTPUT

STROKE LENGTH

RESOLUTION

MULTI-POSITION

Analog

100…20000 mm
(4…787 in.)

16 bit

Up to
2 Positions

SSI

100…20000 mm
(4…787 in.)

0.5 µm

-

Profibus

100…20000 mm
(4…787 in.)

1 µm

Up to
20 Positions

CANbus

100…20000 mm
(4…787 in.)

2 µm

Up to
20 Positions

DeviceNet

100…20000 mm
(4…787 in.)

2 µm

-

EtherCAT^®

100…20000 mm
(4…787 in.)

1 µm

Up to
20 Positions

EtherNet/IP™

100…20000 mm
(4…787 in.)

1 µm

Up to
20 Positions

POWERLINK

100…20000 mm
(4…787 in.)

1 µm

Up to
4 Positions

PROFINET

100…20000 mm
(4…787 in.)

1 µm

Up to
19 Positions

100% USA Origin

MTS Sensor/Temposonics

Replaced Code: RP5SA1200M02R101A100

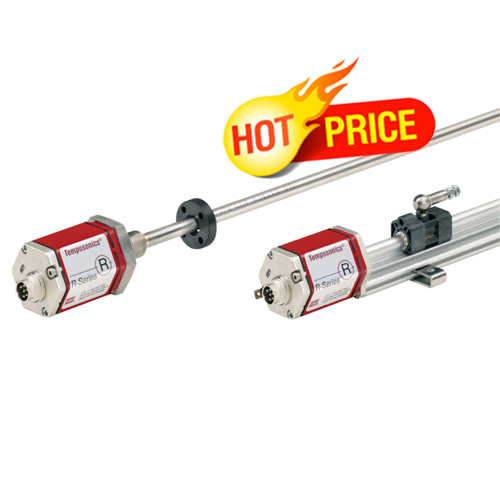

 Temposonics®R-Series
 Details:
 RP5 -> Sensor Model -> Temposonics® R-Series V Profile
 S -> Housing Style -> Magnet slider, joint at top (part no. 252182) (RP)
 A -> Mechanical -> Standard
 1200 -> Stroke Length -> 1200 mm
 M -> Unit Of Measure -> Millimeters
 02 -> Analog Multi Magnet Quantity-> 2 Magnets
 R10 -> Connection -> PVC Cable (530032)
 1 -> System -> Standard
 A -> Output -> Current
 1 -> Function-> Position (1 or 2 magnets/outputs)
 0 -> Options -> Standard
 0 -> Output Range-> 0...10VDC or 4...20mA
 Note: RPS1200MR101A02 is obsoleted

100% USA Origin

MTS Sensor/Temposonics

Replaced Code: RP5SA0400M02R101A100
 Temposonics® R-Series
 Details:
 RP5 -> Sensor Model -> Temposonics® R-Series V Profile
 S -> Housing Style -> Magnet slider, joint at top (part no. 252182) (RP)
 A -> Mechanical -> Standard
 0400 -> Stroke Length -> 400 mm
 M -> Unit Of Measure -> Millimeters
 02 -> Analog Multi Magnet Quantity-> 2 Magnets
 R10 -> Connection -> PVC Cable (530032)
 1 -> System -> Standard
 A -> Output -> Current
 1 -> Function-> Position (1 or 2 magnets/outputs)
 0 -> Options -> Standard
 0 -> Output Range-> 0...10VDC or 4...20mA
 Note: RPS0400MR101A02 is obsoleted

100% USA Origin

MTS Sensor/Temposonics

Replaced Code: RH5MA0100M02R101A100
 Temposonics® R-Series
 Details:
 RH5 -> Sensor Model -> Temposonics® R-Series V Rod
 M -> Housing Style -> Threaded flange M18×1.5-6g (standard) (RH)
 A -> Mechanical -> Standard
 0100 -> Stroke Length -> 100 mm
 M -> Unit Of Measure -> Millimeters
 02 -> Analog Multi Magnet Quantity-> 2 Magnets
 R10 -> Connection -> PVC Cable (530032)
 1 -> System -> Standard
 A -> Output -> Current
 1 -> Function-> Position (1 or 2 magnets/outputs)
 0 -> Options -> Standard
 0 -> Output Range-> 0...10VDC or 4...20mA
 Note: RHM0100MR10AA02 is obsoleted

100% USA Origin

MTS Sensor/Temposonics

Replaced Code: RP5SA0500M02R101A100
 Temposonics® R-Series
 Details:
 RP5 -> Sensor Model -> Temposonics® R-Series V Profile
 S -> Housing Style -> Magnet slider, joint at top (part no. 252182) (RP)
 A -> Mechanical -> Standard
 0500 -> Stroke Length -> 500 mm
 M -> Unit Of Measure -> Millimeters
 02 -> Analog Multi Magnet Quantity-> 2 Magnets
 R10 -> Connection -> PVC Cable (530032)
 1 -> System -> Standard
 A -> Output -> Current
 1 -> Function-> Position (1 or 2 magnets/outputs)
 0 -> Options -> Standard
 0 -> Output Range-> 0...10VDC or 4...20mA
 Note: RPS0500MR101A02 is obsoleted
