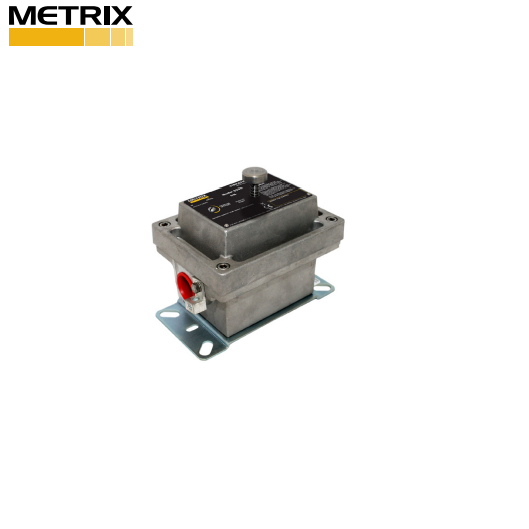

Cảm biến rung (Mechanical Vibration Switch)_Model: 5550-421-340

Cảm biến rung (Mechanical Vibration Switch)-Metrix

Model: 5550-421-340

Specifications:

Amplitude Range: 0 to 16 g pk

Frequency Range: 0 – 60 Hz (0 – 3600 rpm)

Setpoint Adjustment:

+Location: Externally Accessible

+Resolution: 1g (approximately 1/8th turn of adjustment screw where one full turn ≈ 8g)

+Range: 0 – 100% of amplitude range

Wiring Entries: One (3/4” NPT or M20 x 1.5 – see option E)

Local Reset: Manual plunger-style pushbutton on switch housing

Temperature Limit: -40° C to +70° C (-40° F to +158° F)

Mounting: 4-hole rectangular in various dimensional options

Environment Rating:

+NEMA 4 / IP66 (standard)

+NEMA 4X / IP66 (optional)
