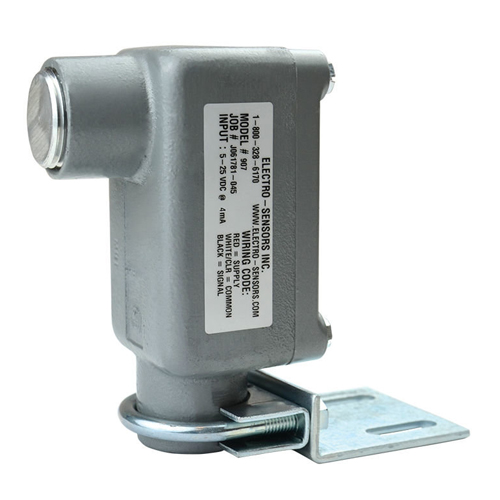

Đại lý phân phối hãng ELECTRO-SENSORS tại Vietnam,Cảm biến tốc độ 907 XP HALL EFFECT Vietnam

Cảm biến tốc độ - Electro sensor – shaft speed sensor

Dòng cảm biến tốc độ - shaft speed sensor của electro nổi tiếng với các tính năng :

Khe hở lớn, không cần tiếp xúc vật liệu
Tín hiệu xung (NPN, PNP) hoặc 4-20 mA
Không cần hiệu chuẩn
Ngõ ra đơn hoặc kép
Chứng chỉ chống cháy nổ (XP), chứng chỉ an toàn (IS) và chống bụi – cháy (DIP) (tùy chọn)
Chắn chắn & tin cậy
Dễ dàng sử dụng & lắp đặt

Các dòng sản phẩm của cảm biến tốc độ của electro sensor

ST420/ ST420-LT/ ST420-DI (Best seller)
906 XP / 907 XP hall effect (Best seller)
1101 Hall effect sensor
931 XP Hall effect sensor
1102 / 932 / 933 XP
1201 / 1202

Series 18
HE950
916A / 917A (replacement only)

BẢNG CODE :

1101 / 931 Cảm biến tốc độ- Shaft Speed Sensors
Typical system also requires Pulser Disc (not included) or WRAP (not included)
Model	Part Number
SENSOR 931 W/10' CABLE	775-093100
SENSOR 931 W/TEFLON CABLE	775-093101
SENSOR 931 W/50' CABLE	775-093105
SENSOR 931 W/100' CABLE	775-093110
1101 18-36V HI TEMP 10' PVC W/LBKT	775-110001
1101 SS 3.75" HE 10' PVC W/O LBKT	775-110003
1101 SS 3.75" HE 50' PVC W/O LBKT	775-110004
1101 SS 3.75" HE 100' PVC W/O LBKT	775-110005
1101 SS 2.0" HE 10' PVC W/O LBKT	775-110100
1101 STD SS 2.0" HE 10' PVC W/LBKT	775-110101
1101 SS 2.0" HE 50' PVC W/O LBKT	775-110105
1101 STD SS 2.0" HE 50' PVC W/LBKT	775-110106
1101 SS 2.0" HE 100' PVC W/O LBKT	775-110110
1101 STD SS 2.0" HE 100' PVC W/LBKT	775-110111
1101 SS 2.0" HE 10' TEFLON W/O LBKT	775-110114
1101 SS 2.0" HE 10' TEFLON W/LBKT	775-110121
1102 / 932 / 933 XP Cảm biến tốc độ - Shaft Speed Sensors
Typical system also requires Pulser Disc (not included) or WRAP (not included)
Model	Part Number
932 STD AL BODY MR 10' PVC W/LBKT	775-093200
932 AL BODY MR 50' PVC W/LBKT	775-093201
932 AL BODY MR 100' PVC W/LBKT	775-093202
932 SS BODY MR 10' PVC W/LBKT	775-093203
932 SS BODY MR 50' PVC W/LBKT	775-093204
932 SS BODY MR 100' PVC W/LBKT	775-093205
OBS SENSOR 932-SS W/SEALED END 10FT	775-093207
SENSOR 933 W/10' CABLE	775-093300
SENSOR 933 W/50' CABLE	775-093301
SENSOR 933 W/100' CABLE	775-093302
SENSOR 933 LARGE XP SENSOR	775-093303
1102 SS 3.75" MR 10' PVC W/O LBKT	775-110006
1102 SS 3.75" MR 50' PVC W/O LBKT	775-110007
1102 SS 3.75" MR 100' PVC W/O LBKT	775-110008
1102 SS 2.0" MR 10' PVC W/O LBKT	775-110200
1102 SS 2.0" MR 10' PVC W/LBKT	775-110201
1102 SS 2.0" MR 50' PVC W/O LBKT	775-110205
1102 SS 2.0" MR 50' PVC W/LBKT	775-110206
1102 SS 2.0" MR 100' PVC W/O LBKT	775-110210
1102 SS 2.0" MR 100' PVC W/LBKT	775-110211
1201 / 1202 Cảm biến tốc độ - Shaft Speed Sensors
Typical system also requires Pulser Disc (not included) or WRAP (not included)
Model	Part Number
1201 SS 3.75" BIDI 10' PVC W/RK BLOCK	775-120101
1202 SS 5.5" BIDO 10' PVC W/RK BLOCK	775-120201
600 Series Cảm biến tốc độ - Shaft Speed Sensors
Model	Part Number
SENSOR 608 PROXIMITY 8MM	775-007208
SENSOR 612 PROXIMITY 12MM	775-007206
SENSOR PROXIMITY 14mm	775-007209
SENSOR 618 PROXIMITY 18MM	775-007205
SENSOR 630 PROXIMITY 30MM	775-007204
SENSOR 608-1 PROXIMITY 8MM	775-007201
SENSOR 612-1 PROXIMITY 12MM	775-007202
SENSOR 618-1 PROXIMITY 18MM	775-007207
SENSOR 630-1 PROXIMITY 30MM	775-007203
906 / 907 XP Cảm biến tốc độ - Shaft Speed Sensors
Typical system also requires Pulser Disc (not included) or WRAP (not included)
Model	Part Number
906 STD AL BODY HE 10' PVC W/LBKT	775-000500
906 AL BODY HE 50' PVC W/LBKT	775-000511
906 AL BODY HE 100' PVC W/LBKT	775-000505
906 BIDI AL BODY HE 10' PVC W/LBKT	775-000504
906 BIDI AL BODY HE 50' PVCW/LBKT	775-000509
906 BIDI AL BODY HE 10O' PVC W/LBKT	775-000510
906 SS BODY HE 10' PVC W/LBKT	775-000400
906 SS BODY HE 50' PVC W/LBKT	775-000405
906 SS BODY HE 100' PVC W/LBKT	775-000410
906 BIDI SS BODY HE 10' PVC W/LBKT	775-000404
906 BIDI SS BODY HE 50' PVC W/LBKT	775-000409
906 BIDI SS BODY HE 100' PVC W/LBKT	775-000414
SENSOR 907 W/10' CABLE	775-000600
SENSOR 907BV XP BI-DI 10'	775-006100
907 BIDI VERT ALIGN XLB3 HE 50' PVC	775-006105
SENSOR 907BV XP BI-DI 100'	775-006110
SENSOR 907BH XP BI-DI 10'	775-006101
916A / 917A XP Cảm biến tốc độ - Shaft Speed Sensors
Typical system also requires Pulser Disc (not included) or WRAP (not included)
Model	Part Number
SENSOR 916A 10FT W/BRKT	775-000801
SENSOR 916A 50FT W/BRKT	775-000802
SENSOR 916A 100FT W/BRKT	775-000803
SENSOR 916A 10FT TEFLON W/BRKT	775-000804
SENSOR 916A 50FT TEFLON W/BRKT	775-000805
SENSOR 916A 100FT TEFLON W/BRKT	775-000806
SENSOR 916A 10FT W/STANDARD BRACKET	775-000807
SENSOR 916A 50FT W/STANDARD BRACKET	775-000808
SENSOR 916A 100FT W/STANDARD BRACKET	775-000809
SENSOR 916A SS 10FT W/SS BRACKET	775-000810
SENSOR 917A 10FT W/BRKT	775-000811
SENSOR 917A 50FT W/BRKT	775-000812
SENSOR 917A 100FT W/BRKT	775-000813
HE950 Cảm biến tốc- Shaft Speed Sensors
Model	Part Number
SENSOR HE950 10' W/BRACKET	775-001400
SENSOR HE950 50' W/BRACKET	775-001401
SENSOR HE950 100' W/BRACKET	775-001402
SENSOR HE950 10' TEFLON W/BRACKET	775-001403
Series 18 Cảm biến tốc- Shaft Speed Sensors
Typical system also requires Pulser Disc (not included) or WRAP (not included)
Model	Part Number
Series 18 Shaft Speed Sensors	18EHQNO-000
Series 18 Shaft Speed Sensors	18EHQNT-000
Series 18 Shaft Speed Sensors	18EHQPO-000
Series 18 Shaft Speed Sensors	18EHQPT-000
Series 18 Shaft Speed Sensors	18EHSNO-000
Series 18 Shaft Speed Sensors	18EHSNT-000
Series 18 Shaft Speed Sensors	18EHSPO-000
Series 18 Shaft Speed Sensors	18EHSPT-000
Series 18 Shaft Speed Sensors	18EMSNO-000
Series 18 Shaft Speed Sensors	18EMSNT-000
Series 18 Shaft Speed Sensors	18EMSPO-000
Series 18 Shaft Speed Sensors	18EMSPT-000
SpeedTalker DeviceNet Cảm biến tốc - Shaft Speed Sensors
Typical system also requires Pulser Disc (not included) or WRAP (not included)
Model	Part Number
SPEEDTALKER-DN (XP)	800-001100
SPEEDTALKER-DN (BH)	800-001200
SPEEDTALKER-DN (UI)	800-001400
ST420 Cảm biến tốc Shaft Speed Sensors
Typical system also requires a Pulser Disc (not included) or WRAP (not included)
Model	Part Number
ST420-L 2 - 200 RPM, 8 PPR	800-001600
ST420-H 2 - 2000 RPM, 8 PPR	800-001601
ST420-C-0019 0.2 - 200 RPM, 8 PPR	800-001620
ST420-C-0020 0.2 - 2000 RPM, 8 PPR	800-001621
ST420-DI-L 2 - 200 RPM, 8 PPR	800-001900
ST420-DI-H 2 - 2000 RPM, 8 PPR	800-001901
ST420-DI-C-0019 0.2 - 200 RPM, 8 PPR	800-001920
ST420-DI-C-0020 0.2 - 2000 RPM, 8 PPR	800-001921
ST420-LT-L 2 - 200 RPM, 8 PPR	800-004100
ST420-LT-H 2 - 2000 RPM, 8PPR	800-004101
ST420-LT-C-0019 0.2 - 200 RPM, 8 PPR	800-004120
ST420-LT-C-0020 0.2 - 2000 RPM, 8 PPR	800-004121
