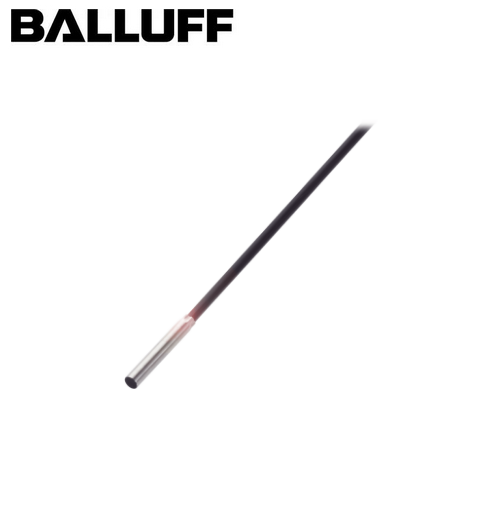

Cảm biến từ (Inductive sensor)_Model: BES00JY (BES 516-3008-G-E4-C-PU-05)

Cảm biến từ (Inductive sensor) – Balluff

Model: BES00JY (BES 516-3008-G-E4-C-PU-05)

Key features:

Dimension: Ø 4 x 27 mm

Style: D4.0

Installation: for flush mounting

Range: 1.5 mm

Switching output: NPN normally open (NO)

Switching frequency: 5000 Hz

Housing material: Stainless steel

Material sensing surface: PBT

Connection: Cable, 5.00 m, PUR

Operating voltage Ub: 10...30 VDC

Ambient temperature: -25...70 °C

IP rating: IP67

Approval/Conformity: cULus, CE, EAC, WEEE
