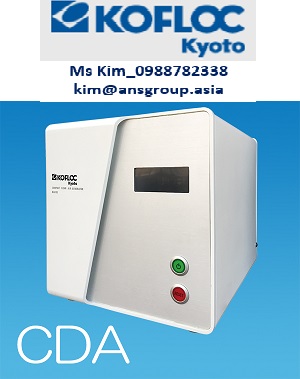

Clean Dry Air Generator Mini-CUBE SERIES
Xuất sứ: JAPAN
Nhà cung cấp: ANS_ANH NGHI SƠN ĐÀ NẴNG
Hãng sản xuất: KOFLOC VIET NAM
Ứng dụng sản phẩm: Automotive
Hotline
anhnghisonhcm| TYPE | Clean Dry Air generator Mini-CUBE Series | ||||
| MAIRS-0.3 | |||||
| JIS B 8392-1：2012（ISO8573-1：2010） JIS grade【 0 ： 2 ： 0 】 | |||||
| JIS grade | Detail | ||||
| Maximum particle | 0 | The maximum number of particles per 1㎥（particle size=dμm）※3 | |||
| content | particle size | 0.1<ｄ≦0.5 | 0.5<ｄ≦1.0 | 1.0<ｄ≦5.0 | |
| Pieces | ≦10 | ≦4 | ≦2 | ||
| Dew point | 2 | ≦-60℃ | |||
| （Under pressure） | （ atmospheric pressure dew point ≦-70℃） | ||||
| Total Oil concentration | 0 | Liquid oil, oil mist, oil vapor 0.01mg/m3未満 | |||
| Generating volume ※1 | 10.0NL/min | ||||
| Pressure | 0.2MPa | ||||
| Surrounding temperature | 5～35℃ | ||||
| Surrounding humidity | 10～80%RH | ||||
| Device dimensions | 310mm(W)×392mm(D)×310mm(H) | ||||
| Device weight | 約25ｋｇ | ||||
| Sound level ※2 | 55dB（A) | ||||
| Electricity consumption | 0.3kW | ||||
| Power supply voltage | AC100～240V 1φ 50/60Hz | ||||
