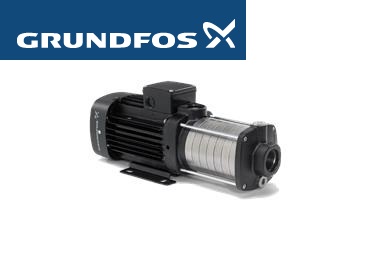

CM5-5 A-R-A-E-AQQE - 96807033
Xuất sứ: Denmark
Nhà cung cấp: ANS- ANH NGHI SƠN
Hãng sản xuất: Grundfos
Hotline
anhnghisonhcm* Installation:
| Maximum ambient temperature | 55 °C |
| Maximum operating pressure | 10 bar |
| Max pressure at stated temp | 10 bar / 90 °C |
| Flange standard | WHITWORTH THREAD RP |
| Pump inlet | Rp 1 1/4 |
| Pump outlet | Rp 1 |
| Connect code | R |
| *) Electrical data |
|---|
| Motor type | 80C |
| IE Efficiency class | IE2 |
| Rated power - P2 | 1.2 kW |
| Mains frequency | 50 Hz |
| Rated voltage | 3 x 220-240D/380-415Y V |
| Service factor | 1 |
| Rated current | 4,8-5,2/2,8-3 A |
| Starting current | 770-800 % |
| Rated speed | 2820-2860 rpm |
| Motor efficiency at full load | 79.6 % |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Motor protec | NO |
