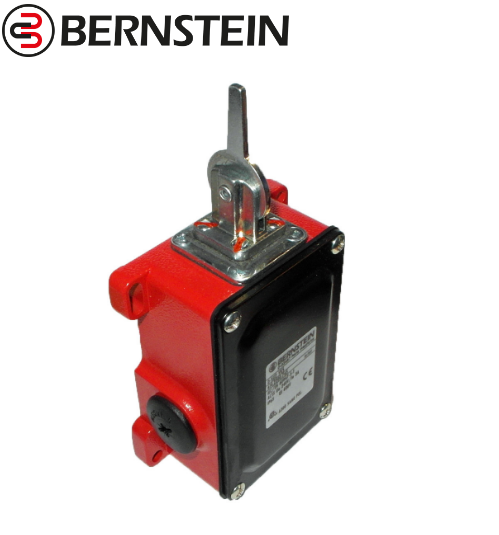

Công tắc giới hạn (Limit switch) - Bernstein Viet Nam

Model: 6142200765

Mechanical data:

Enclosure: Die-cast aluminium

Cover: Sheet aluminium

Actuator: Lever (St)

Ambient air temperature: -40 °C/ +80 °C

Contact type: 2 NO, 2 NC

Mechanical life: 1 x 106 operating cycles

Switching frequency: ≤ 50 / min.

Assembly: 4 x M5

Connection: 8 screw terminals (M3,5)

Conductor cross-sections: Solid: 0,5 ... 1,5mm² Litz wire with ferrules: 0,5 ... 1,5mm²

Cable entrance: 2 x M20 x 1,5
