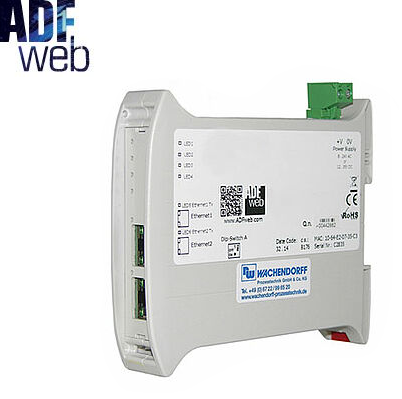

Mr. BảoBộ chuyển đổi HD67863-A1-4A ADFWeb
| Specifications: | |
| Ports: | 1xEthernet; 4xIO-Link; |
| Ethernet protocol | Modbus TCP Slave |
| IO-Link protocol | IO-Link Master |
| Data rates Modbus TCP | 10/100 Base-T Autosensing |
| Data rates IO-Link | 4800 bps - 38400 bps - 230400 bps |
| Modbus TCP Connector | RJ45 |
| IO-Lin Connector | 4x-IO-Link A: 4way 3mm terminal block |
| Power Supply Connector | 2way 5mm terminal block |
| Power Supply | 8..24V AC; 12..35V DC |
| Operating temperature | -40蚓/+85蚓 (-40蚌/+185蚌) |
| Dimensions | 120x23x107 (LxWxH) |
| Weight | 200g approx |
| Mechanical fixing | DIN Rail montage |
| SOFTWARE: | SW67863 |
| ORDER CODE: | HD67863-A1-4A |
