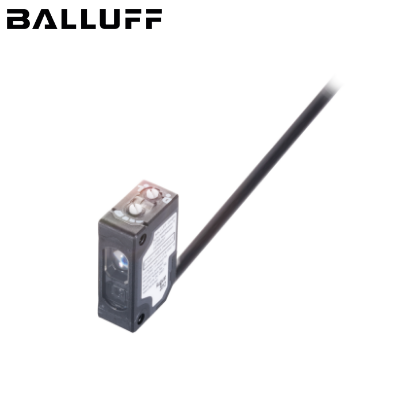

Cảm biến quang  BOS01JY Typecode:  BOS 5K-NU-LH12-02  Balluff

Series

: 5K

Dimension

: 10.8 x 32.7 x 19.5 mm

Interface

: NPN normally open/normally closed (NO/NC)

Principle of operation:

Photoelectric sensor

Principle of optical operation

: Diffuse sensor, triangulation

Special optical feature

: Background suppression

Beam characteristic

: Focus, typical at 260 mm

Light type:

Laser red light

Light spot size

: 0.2 x 0.3 mm at focal point

Range

: 20...300 mm

Connection

: Cable, 2.00 m, PVC

Housing material

: PC
PBT

Material sensing surface

: PMMA

Operating voltage Ub

: 10...30 VDC

Approval/Conformity

cULus
CE
WEEE
UKCA

Trademark

: Global
