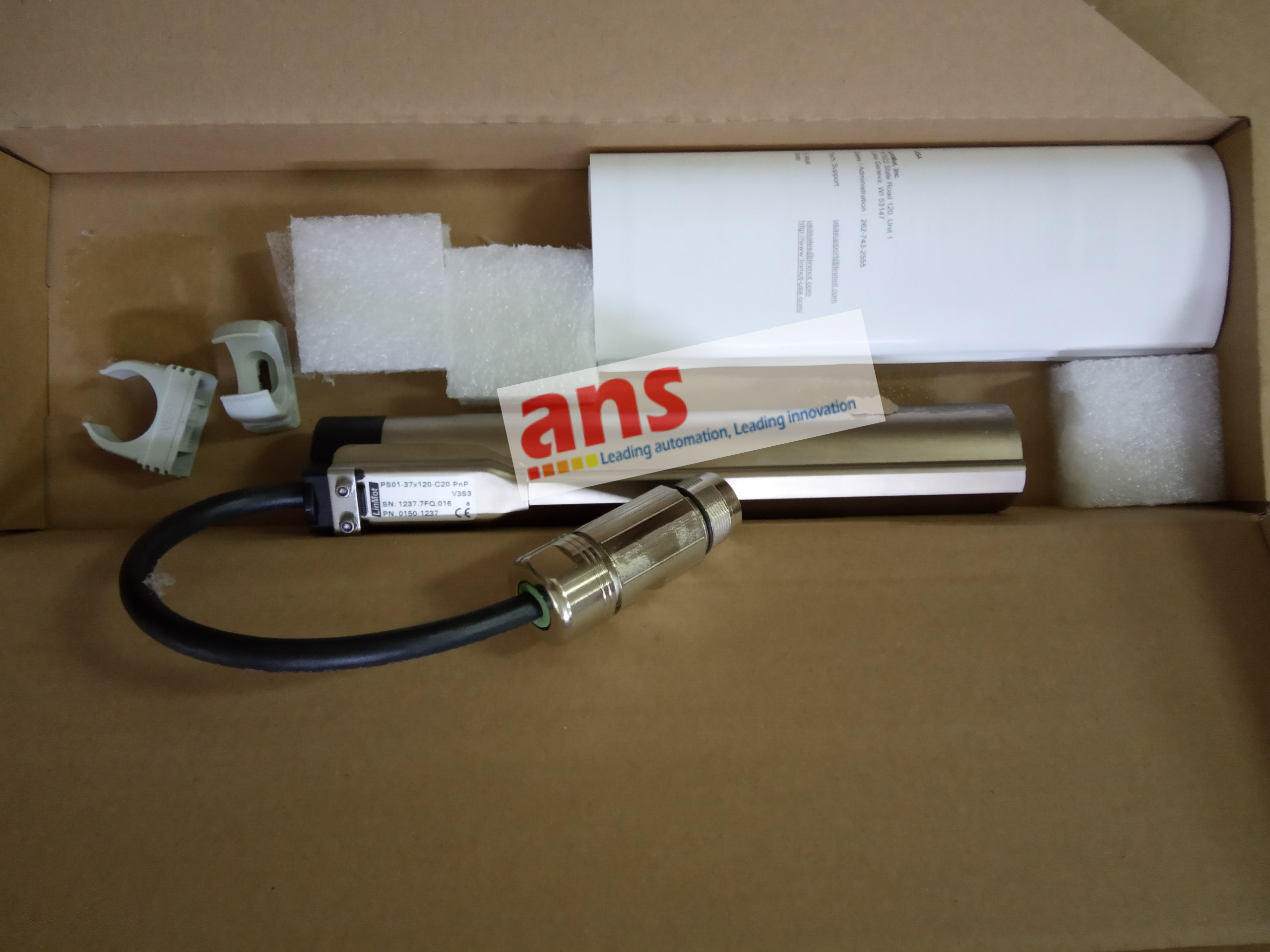

Động cơ tuyến tính (Linear Motor) - Limot

Article no.: PS01-37x120-C20 0150-1237

Technical Data
Max. Stroke 1480 mm
Max. Force 255 N
Continuous Force 48/87 N
Max. Velocity 3.8 m/s
Position Repeatability ±0.05 mm
Motor Cable
Supported Drives

Mechanical Data
Stator Diameter 37 mm
Stator Length 227 mm
Stator Mass 740 g
Slider Diameter 20 mm
Slider Length 240 - 1600 mm
Slider Mass 490 - 3620 g
