Đại lý Thielmann Vietnam,Đồng hồ chênh áp 14DP9-12LH00E02 Thielmann Vietnam,14DP9-12LH00E02 Thielmann Vietnam,Đồng hồ chênh áp 14DP9-12LH00E02Thielmann 14DP9-12LH00E02 Differential Pressure Gauge – Đồng hồ chênh áp,Thielmann 14-B-DP9-12LU10E02 Differential Pressure Gauge – Đồng hồ chênh áp

Đại lý Thielmann Vietnam,Đồng hồ chênh áp 14DP9-12LH00E02 Thielmann Vietnam

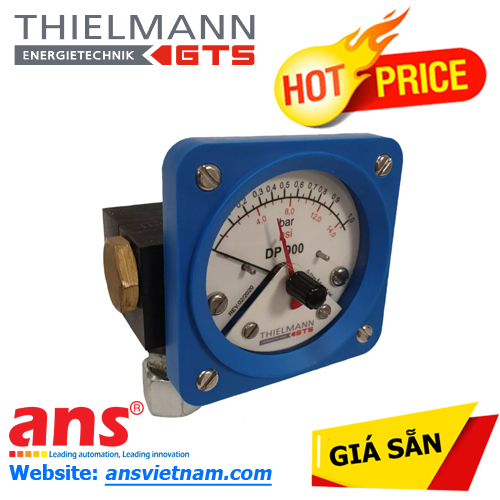

Thielmann 14DP9-12LH00E02 Differential Pressure Gauge – Đồng hồ chênh áp

Mã đặt hàng: 14DP9-12LH00E02

Nhà sản xuất: Thielmann

ĐẶC ĐIỂM

An toàn vận hành cao
Thiết kế mạnh mẽ, nhỏ gọn
Chịu áp lực lên đến 350 bar
Bảo trì dễ dàng
Hướng dòng chảy có thể lựa chọn
Chỉ báo kéo theo tiêu chuẩn
Thang đo kép / psi hoặc mbar / kPa được áp dụng phổ biến
Màn hình hiển thị có thể lựa chọn cho biết phạm vi

Thông số kỹ thuật 14DP9-12LH00E02 Thielmann

Type: DP912LH00E02measuring range: 0 - 1,6 barprecision: 3% (of scale value)

Max. stat. pressure: < 200 bar (single- or both-side) operating temperature: -30 bis +80°C

Flow-direction: LEFT -> RIGHT

Connection: 1/4 NPT (i)

Connection direction: from BELOW

Union: EO-GE12-PL/1/4 NPT A3

Creedcontact: with Reedcontact

Integated finefilter: WITHOUT

Max. indicator: YES

With protection casing: NO

With emblem: GTS

Thielmann 14-B-DP9-12LU10E02 Differential Pressure Gauge – Đồng hồ chênh áp

Mã đặt hàng: 14-B-DP9-12LU10E02

Nhà sản xuất: Thielmann

ĐẶC ĐIỂM 14-B-DP9-12LU10E02 Thielmann

An toàn vận hành cao
Thiết kế mạnh mẽ, nhỏ gọn
Chịu áp lực lên đến 350 bar
Bảo trì dễ dàng
Hướng dòng chảy có thể lựa chọn
Chỉ báo kéo theo tiêu chuẩn
Thang đo kép / psi hoặc mbar / kPa được áp dụng phổ biến
Màn hình hiển thị có thể lựa chọn cho biết phạm vi

Thông số kỹ thuật đồng hồ 14-B-DP9-12LU10E02:

Differential pressure gauge
type: DP912LU10E02
measuring range: 0 - 1,6 bar
precision: 3% (of scale value)
max. stat. pressure: < 200 bar (single- or both-side)
operating temperature: -30 bis +80°C
flow-direction: LEFT -> RIGHT
connection: G1/4 '' (i)
connection direction: from BELOW
union: EO-GE12-PL/1/4 NPT A3C
Reedcontact: with Reedcontact
integated finefilter: WITHOUT
max. indicator: YES
with protection casing: NO
with emblem: GTS

THẢM KHẢO LIST CODE VÀ LIỆN HỆ ĐẶT HÀNG PHÍA DƯỚI

100% USA Origin	Allen Bradley Vietnam	Model: : 801-NX7 Limit switch
100% USA Origin	Allen Bradley Vietnam	Model: : 801-NX8 Limit switch
100% USA Origin	Allen Bradley Vietnam	Model: : 801-NX10 Limit switch
100% Japan Origin	Azbil Vietnam	Model: MY3000G0200 MY3000G0200 Valve Linkages Models Q455C, Q455D, Q455F
100% EU Origin	B&R Vietnam	Code: 8BVP0440HW00.000-1 Description: power supply unit
100% Germany / Turkey Origin	Bihl+wiedemann Vietnam	Model: BWU3275 ASi-3 PROFIBUS Gateway with integrated Safety Monitor, 2 ASi masters ASi-3 PROFIBUS Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 6 digital inputs or 3 x 2 channels safe inputs (SIL 3, cat. 4), expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 6 release circuits (6 x fast electronic safe outputs), expandable to max. 32 safe outputs, 992 safe outputs in max. configuration, Safe Link, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
100% Italy Origin	Bomec Vietnam	MVX/2600/10/6 S/N 14077111 - 2014 Motovibrator
100% United Kingdom Origin	Contrec Vietnam	P.N: 220i.10M Contrec 220I I.S. Level Indicator. Field mount IP67 enclosure. Analog input, 4-20mA loop powered with Alarm outputs when powered with 9-24V DC . Panel mount kit with 3 bottom gland entries. Ex ia IECEx/ATEX.
100% China Origin	Copeland Vietnam	Model: ZF15K4E-TFD-556 Compressor
100% Germany Origin	DOLD Vietnam	Model: RN5897.12/010/61 AC/DC24-60V Art No: 0066940 Insulation monitor
100% EU Origin	E+H Vietnam	Code: PMC71-ABA1EBGABAA+Z1 Description: Pressure transmitter
100% Italy Origin	Eurotherm Vietnam	Part no : G418-0001.V1 Signal Transducers
100% EU Origin	Finder Vietnam	Code: 55.34.9.024.0040 Description: Relay
100% EU Origin	Finder Vietnam	Code: 86.00.0.240.0000 Description: Analog Timer
100% EU Origin	Finder Vietnam	Code: 60.13.9.024.0040 Description: Relay
100% Australia Origin	Flomec Vietnam	Code: 41-OM004-A511-221QP Oval gear meter FLOMEC1/8" NPT,ALUMINIUM PULSE METER 1/8" NPT, FLOW RATES 2 - 100 LPH, ALUMINUM BODY & STAINLESS STEEL ROTORS, CERAMIC BEARINGS, VITON O-RING MATERIAL, TEMPERATURE LIMITS 120C WITH PRESSURE RATING 15 BAR ,NO TOTALISER,M20x1.5MM CABLE CONNECTION, QUADRATURE PULSE OUTPUT (2x NPN) Note: "41" in front of is supplier own part no
100% USA Origin	Fluke Process Instrument Vietnam	E1RL-F2-V-0-0 Endurance infrared sensors Range: 600 to 1800°C (1112 to 3272°F) (2-color mode) 100:1 D:S 550 to 1800°C (1022 to 3272°F) (single color mode) 100:1 D:S Focus Distance: 600mm - ∞ (24” - ∞) Manual Variable Focus Sighting: Video Camera through the lens and Visible through the lens Communications: Ethernet network communications interface with installed M12 fieldbus connector and built-in HTTP-Server server (Gives you ASCII, Ethernet, video, webserver)
100% USA Origin	Fluke Process Instrument Vietnam	E-2CCB8 Item no: 4727562 High-temp (200°C) multi-conductor cable with connector, 8m (26 ft.) not including terminal strip
100% USA Origin	Fluke Process Instrument Vietnam	E-TB Item no: 4742707 Endurance terminal block accessory
100% USA Origin	Fluke Process Instrument Vietnam	E-TJ1 Item no: 4727478 ThermoJacket housing for Endurance sensors
100% USA Origin	Fluke Process Instrument Vietnam	E-ETHCB Item no: 4727189 Ethernet cable, 180°C max., 7.5 m (25ft.) long
100% EU Origin	JVM/JOST/Joest Vietnam	Unbalance Drive JX 134-90 Part No.: 02 98588 Specification: Voltage: 380-420 V Frequency: 50 HZ Power: 0,80 KW Protection: IP66 NOTE: Replacement type for the old JV 134-90 with the same foot dimensions. If the vibrating machine is equipped with 2 motors, both must be replaced. A vibrating machine must not be operated with 2 different motors
100% EU Origin	JVM/JOST/Joest Vietnam	Unbalance Drive JX 154-130 Part No.: 02 98589 Specification: Voltage: 380-420 V Frequency: 50 HZ Power: 1,20 KW Protection: IP66 NOTE: Replacement type for the old JV 154-130 with the same foot dimensions. If the vibrating machine is equipped with 2 motors, both must be replaced. A vibrating machine must not be operated with 2 different motors.
100% EU Origin	JVM/JOST/Joest Vietnam	Unbalance Drive JX 174-200 Part No.: 02 97964 Specification: Voltage: 380-420 V Frequency: 50 HZ Power: 1,60 KW Protection: IP66 NOTE: Replacement type for the old JV 174-200 with the same foot dimensions. If the vibrating machine is equipped with 2 motors, both must be replaced. A vibrating machine must not be operated with 2 different motors.
100% USA Origin	Kennametal Vietnam	Order code : Electrode - Stellite 6 Description : 4.0x350mm Que hàn 1 Box= 5kgs
100% Korea Origin	Kwangjin Vietnam	Code: OR3225-40A-Ø26-03 Rotary Join/ Swivel Joint
100% Germany Origin	Minimax Vietnam	P/N.: 801618 Fire detector FMX3511
100% USA Origin	MTS Sensor/Temposonics Vietnam	Code : RP5SA0400M01R021A100 TEMPOSONICS R-Series Note: RPS0400MR021A01 is obsoleted
100% Japan Origin	NSD Vietnam	Model: VS-5FX-1 VARICAM
100% Japan Origin	NSD Vietnam	Model: VS-5FX VARICAM
100% EU Origin	Schischek Vietnam	Code: InMax-5.10-SF Description: Electric rotary actuator / Elektrischer Drehantrieb with emergency function and robust die-cast aluminum housing Size S with spring return Electric rotary actuator with emergency function and robust die-cast aluminum housing. Rated voltage: 24-240VAC/DC Control: open/close, 3-pts Torque: 5 to 15Nm, depending on model Running time: 3/15/30/60/120s, adjustable Spring return: 3/10s, adjustable Ambient temp .: -40...+50°C Angle of rotation: 95° incl. 5° preload Protection class: IP 66 Axle mount: 12x12mm square More functions: Integrated, regulated heating Constant, load-independent runtime position indicator Connection cable 1m, not interchangeable
100% EU Origin	Schischek Vietnam	Code: InMax-15-SF Description: Rotary actuator
100% India Origin	Schrader Duncan Vietnam	Model: A830MD ½” 5/2 double poppet valve 230AC G-25 coil
100% Japan Origin	Showa Giken Vietnam	Model: RXS 7838.100A Rotary Joint (D/W.2A20953)
100% Germany Origin	Thielmann Vietnam	Model: 14DP9-12LH00E02 Differential pressure gauge Type: DP912LH00E02 Measuring range: 0 - 1,6 bar Precision: 3% (of scale value) Max. stat. pressure: < 200 bar (single- or both-side) Operating temperature: -30 bis +80°C Flow-direction: LEFT -> RIGHT Connection: 1/4 NPT (i) Connection direction: from BELOW Union: EO-GE12-PL/1/4 NPT A3Creedcontact: with Reedcontact Integated finefilter: WITHOUT Max. indicator: YES with protection casing: NO with emblem: GTS
100% Japan Origin	Towa Seiden Vietnam	Model: PRL-101 Length 300mm Rotary Paddle Type Level Switch Sensor Power supply: AC 220/240V Flange: JIS5k80A Aluminum Paddle size: Standard W-1(80x80mm, SUS304) Note: Length 300mm là thông số đặc biệt, sale confirm trước khi lên PO
100% Netherland Origin	TYCO Vietnam	Code: 516.600.007 Description: 601F-M IR Flame detector, Non-IS, Solar blind Note : Recheck stock before order
100% Italy Origin	Valbia Vietnam	Order code : 8E03600414 Description : 600105 size DN80 +VB060 100/240V Valve with actuator
