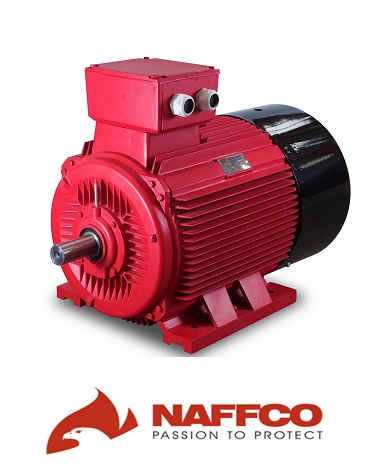

Electric Motor Naffco Vietnam ANSdanang

Electric Motor Naffco Vietnam ANSdanang

•  General Specification - Mains Supply 380-415V, 50Hz, 3 Phase, 2 Pole

  Model	Rated Power kW	Rated Power HP	Rated Speed R.P.M	Rated Current A	Efficiency %
  NM2D50RB801	0.75	1.00	2825	1.80	75
  NM2D50RB802	1.10	1.50	2825	2.60	77
  NM2D50RB90S	1.50	2.00	2840	3.40	78
  NM2D50RB90L	2.20	3.00	2840	4.90	81
  NM2D50RB100L	3.00	4.00	2880	6.30	82
  NM2D50RB112M	4.00	5.50	2900	8.10	85
  NM2D50RB132S1	5.50	7.50	2900	11.00	86
  NM2Y50RB132S2	7.50	10.00	2930	14.90	87
  NM2Y50RB160M1	11.00	15.00	2930	21.30	88
  NM2Y50RB160M2	15.00	20.00	2930	28.80	89
  NM2Y50RB160L	18.50	25.00	2930	34.70	90
  NM2Y50RB180M	22.00	30.00	2940	41.00	90.5
  NM2Y50RB200L1	30.00	40.00	2950	55.50	91.2
  NM2Y50RB200L2	37.00	50.00	2950	67.90	92
  NM2Y50RB225M	45.00	60.00	2970	82.30	92.3
  NM2Y50RB250M	55.00	75.00	2970	100.40	92.5
  NM2Y50RB280S	75.00	100.00	2970	131.40	93.2
  NM2Y50RB280M	90.00	125.00	2970	160.20	93.8
  NM2Y50RB315S	110.00	150.00	2980	195.40	94
  NM2Y50RB315M	132.00	180.00	2980	233.20	94.5
  NM2Y50RB315L1	160.00	220.00	2980	279.30	94.5
  NM2Y50RB315L2	200.00	270.00	2980	378.40	94.8

  Model	Power Factor Cosφ	Rated Torque Nm	Noise Lw dB(A)	Weight kg
  NM2D50RB801	0.83	2.54	67	16.5
  NM2D50RB802	0.84	3.72	67	17.5
  NM2D50RB90S	0.84	5.04	72	21
  NM2D50RB90L	0.85	7.40	72	25
  NM2D50RB100L	0.87	9.95	76	33
  NM2D50RB112M	0.88	13.22	77	41
  NM2D50RB132S1	0.88	18.11	80	63
  NM2Y50RB132S2	0.88	24.70	80	70
  NM2Y50RB160M1	0.89	35.85	86	110
  NM2Y50RB160M2	0.89	48.89	86	120
  NM2Y50RB160L	0.90	60.30	86	135
  NM2Y50RB180M	0.90	71.46	89	165
  NM2Y50RB200L1	0.90	97.12	92	218
  NM2Y50RB200L2	0.90	119.78	92	230
  NM2Y50RB225M	0.90	144.70	92	280
  NM2Y50RB250M	0.90	176.85	93	365
  NM2Y50RB280S	0.91	241.16	94	495
  NM2Y50RB280M	0.91	289.39	94	565
  NM2Y50RB315S	0.91	352.51	96	890
  NM2Y50RB315M	0.91	423.02	96	980
  NM2Y50RB315L1	0.92	512.75	99	1055
  NM2Y50RB315L2	0.92	640.94	99	1110

  * Higher range motors are available.

   General Specification - Mains Supply 220-240 V, 380-460 V, 60Hz, 3 Phase, 2 Pole
