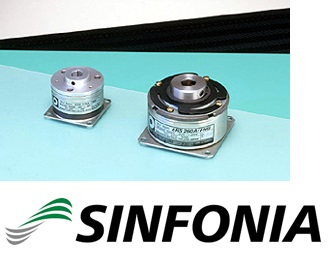

EPR-501A Brake Sinfonia

Nhà cung cấp: Anh Nghi Sơn

Hãng sản xuất: ACCURATE SENSOR

Liên hệ tư vấn

Mr. Huy

huy@ansgroup.asia

0934 039 951

0934 039 951

live:.cid.800dcc9fd7c9fe04

anhnghisonhcm

EPR-501A Brake Sinfonia Vietnam ANSdanang

< EPR-501A>
Type EPR-501A
Clutch Brake
Static friction torque Nm 70 40
Rated voltage DC-V 24
Power consumption W(at75°C) 23 13
Weight kg 15





Dimensions Q shows effective length of φdh6.
Unit:mm



Diameter direction
A 204
B 75
C 102
E 40
G 12
H 202.5
Shaft direction
L 375
M 227
N 101
O 40
P 187.5
R 129.5
Z 12
Shaft edge
Q 56
QK 47
d 22
b 7
h 7
t 4
Controller
FMPR70/24D
