ELECTRO-MAGNETIC /
EDDY CURRENT COATING THICKNESS METERS |
 |

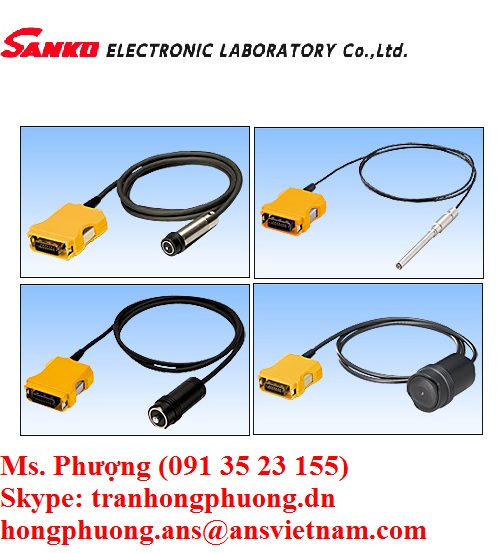

| Exclusive probes for SWT series |
|
 |
|
 |
|
 |
|
| Fe-2.5 |
|
Fe-0.6Pen |
|
Fe-10 |
|
 |
|
 |
|
| NFe-2.0 |
|
NFe-8 |
|
|
| ● |
Separate-interchangeable probes available with a main unit. |
| ● |
Selections of probe for ferrous (electro-magnetic) or non-ferrous ( eddy current) substrate depending on a measuring object. |
| ● |
Capability of selections probe like high-stable probe to measure minute piece objects or alike depending on applications and a measurement range. |
|
|
|
| Specifications of SWT (Fe probes) |
| Models |
Fe－2.5※1/2.5L |
Fe-2.5LwA |
Fe-0.6Pen |
| Methods |
Magnetic inducing type |
| Ranges |
0～2.50mm |
0～600μm |
| Display resolutions |
1μm：0～999μm
switching to
0.1μm：0～400μm
0.5μm：400～500μm
0.01mm：1.00～2.50mm |
1μm：0～600μm
switching to
0.1μm：0～400μm
0.5μm：401～500μm |
Accuracies
(perpendicularly
testing on
flat face) |
0～100μm：±1μm
or ±2% the reading value
101μm～2.50mm：±2%
0～100μｍ：±１μｍ or ±2％ the reading value
101μm～600μm:
±2% the reading value |
| Probes |
One point contact constant pressure type,
V cut
2.5：φ13×48mm
2.5L：18x23x67mm |
One point contact constant pressure type,
Measuring part：About 20x57mm
Total Length： about 550～1,550mm (flexible) |
One point contact constant pressure type, V cut
φ5.6x94mm |
V type probe adaptors※2
/Non |
Non |
| Accessories |
Standard thickness,
Zero plate for testing (Fe) |
Standard thickness,
Zero plate for testing (Fe)
Carrying case |
Standard thickness,
Zero plate for testing (Fe) |
| Measuring objects |
Coating, lining, thermal spray films, plating (except electrolyte nickel plating) etc. on magnetic metal substrate like iron, steel. |
Coating, lining, plating on high/hard-to-reach/remote place on magnetic metal substrate like iron, steel. |
Coating, lining, plating on a narrow/small place and part substrate like iron, steel. |
|
|
※1．Probes are heat-resistant （about 200℃）. （Ｆｅ-2..5）
※2．V type probe adaptors (３ kinds: lessΦ5, Φ5～10, Φ10～20） can be used with Fe-2.5. |
|
| Models |
Fe-10 |
Fe-20 |
| Methods |
Magnetic inducing type |
| Ranges |
0～10mm |
0～20mm |
| Display resolutions |
1μm：0～999μm
0.01mm：1～10mm |
1μm：0～999μm
0.01mm：1～5mm
0.1mm：5～20mm |
Accuracies
(perpendicularly
testing on flat
face) |
0～3mm：±(5μm + 3％ the read value)
Over or 3.01mm：±3％ the read value |
| Probes |
One point contact constant pressure type, V cut
φ18x47mm |
One point contact constant pressure type, V cut
φ35x59mm |
| Accessories |
Standard thickness,
Zero plate for testing （Fe） |
| Measuring objects |
Relatively thicker objects |
Thick objects |
|
|
| Probe must be ordered separately. |
|
| Specifications of SWT (NFe probes) |
| Models |
NFe-2.0※１/2.0L |
NFe-0.6 |
NFe-8 |
| Methods |
Eddy current type |
| Ranges |
0～2.00mm |
0～600μm |
0～8mm |
Display
resolutions |
1μm：0～999μm
switching to
0.1μm：0～400μm
0.5μm：400～500μm
0.01mm：1.00～2.00mm |
1μm：0～600μm
switching to
0.1μm：0～400μm
0.5μm：400～500μm |
1μm：0～999μm
0.01mm：1～8mm |
Accuracies
(perpendicularly
on flat face) |
0～100μm：±1μm
or ±2% the read value
101μm～2.00mm：±2% |
0～100μm：±1μm
or ±2% the read value
101μm～600μm：±2% |
0～3mm：±(5μｍ + ±3％ the read value)
Over or 3.01mm：±3％ the read value |
| Probes |
One point contact constant pressure type, V cut
2.0：φ13×47mm
2.0L：18x23x67mm |
One point contact constant pressure type,
φ11×48mm |
One point contact constant pressure type, V cut
φ35×61mm |
| V type probe adaptor※2/Non |
Non |
| Accessories |
Standard thickness, Zero plate for testing (NFe) |
Measuring
objects |
Insulated films on non-Magnetic metal substrates like aluminum, cupper |
| Relatively general use objects |
like aluminum, cupper for high stability for narrow bar , tube, minute pieces |
Relatively thick objects |
|
|
Probe must be ordered separately.
※1．Probes are heat-resistant （about 200℃）. （ＮＦｅ-2.0）
※2．V type probe adaptors (３ kinds：lessΦ5, Φ5～10, Φ10～20） can be used with NFe-2.0. |
